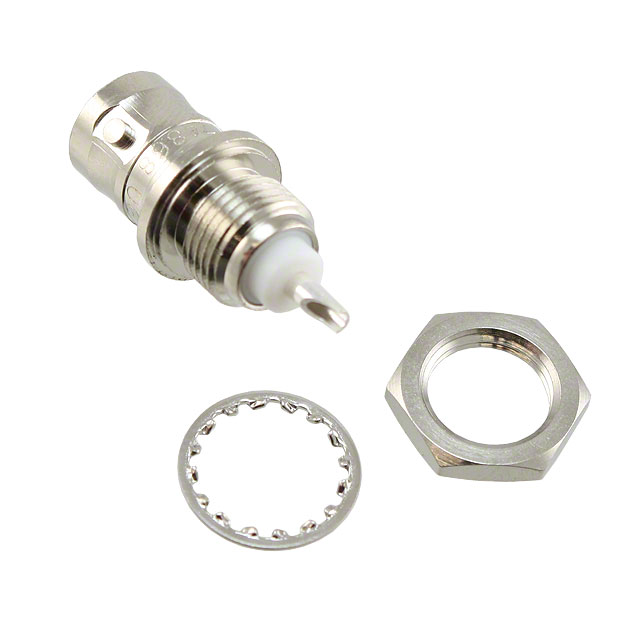

000-5575

Active

Amphenol RF

CONN BNC RCPT STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN BNC RCPT STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	000-5575

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Silver
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	2 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

Part	Connector Style	Body Finish	Voltage Rating	Includes	Insertion Loss	Frequency - Max [Max]	Center Contact Material	Contact Termination	Number of Ports	Center Contact Plating	Connector Type	Dielectric Material	Mounting Feature	Mating Cycles	Body Material	Housing Color	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Impedance
Amphenol RF 000-5575	BNC	Nickel	500 V	1 Connector 1 Lockwasher 1 Nut	0.2 dB	2 GHz	Beryllium Copper	Solder Cup	1	Silver	Female Socket Jack	Polytetrafluoroethylene (PTFE)	Bulkhead - Rear Side Nut	500	Brass	Silver	Solder	-65 ░C	165 °C	Bayonet Lock	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder Cup
