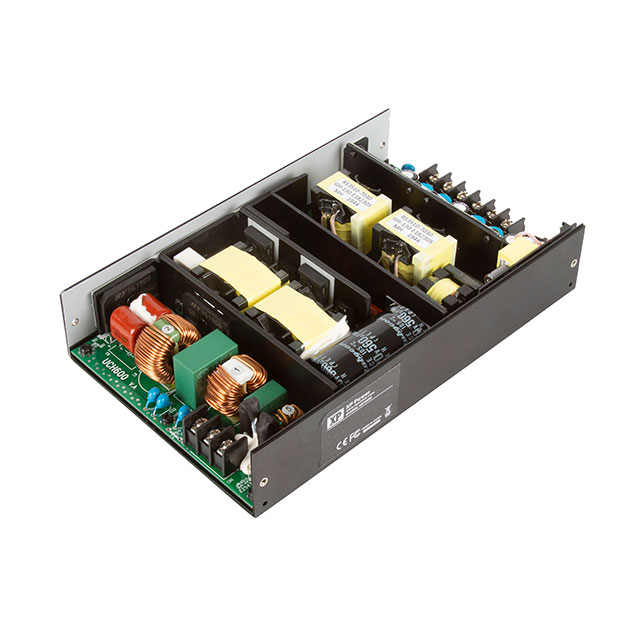

UCH600PS12
ActiveXP POWER
AC/DC CONVERTER 12V 600W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UCH600PS12
ActiveXP POWER
AC/DC CONVERTER 12V 600W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UCH600PS12 |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CB, CE, TUV, UL |
| Current - Output 1 | 50 A |
| Efficiency | 93 % |
| Features | PFC, Universal Input, Adjustable Output, Standby Output, Remote On/Off |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Power (Watts) | 600 W |
| Size / Dimension [x] | 203.2 mm |
| Size / Dimension [x] | 8 " |
| Size / Dimension [y] | 5 " |
| Size / Dimension [y] | 127 mm |
| Size / Dimension [z] | 1.57 " |
| Size / Dimension [z] | 40 mm |
| Standard Number | 62368-1 |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 266.20 | |
| 5 | $ 258.21 | |||
| 10 | $ 250.23 | |||
| 25 | $ 239.58 | |||
| 100 | $ 223.61 | |||
Description
General part information
UCH600 Series
Open Frame AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
