1916A B59250

Obsolete

Belden Inc.

16 #24 JKTD PRS PVC

Search across all available documentation for this part.

Obsolete

Belden Inc.

16 #24 JKTD PRS PVC

Technical Specifications

Parameters and characteristics for this part

Part	Features	Cable Type	Jacket Color	Length [x]	Length [x]	Shield Material	Voltage	Usage	Shield Type	Number of Conductors	Conductor Insulation	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter	Conductor Material	Wire Gauge	Jacket (Insulation) Material	Shield Coverage	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length
Belden Inc. 1916A B59500	Drain Wire	Multi-Pair	Black	500 '	152.4 m	Copper Bare	300 V	Audio	Braid	32	Polypropylene (PP)	0.683 in	17.35 mm	Copper Bare	24 AWG	Poly-Vinyl Chloride (PVC)	95 %	-20 C	60 °C	41 strands	40
Belden Inc. 1916A B59250	Drain Wire	Multi-Pair	Black			Copper Bare	300 V	Audio	Braid	32	Polypropylene (PP)	0.683 in	17.35 mm	Copper Bare	24 AWG	Poly-Vinyl Chloride (PVC)	95 %	-20 C	60 °C	41 strands	40	3000 "	76.2 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

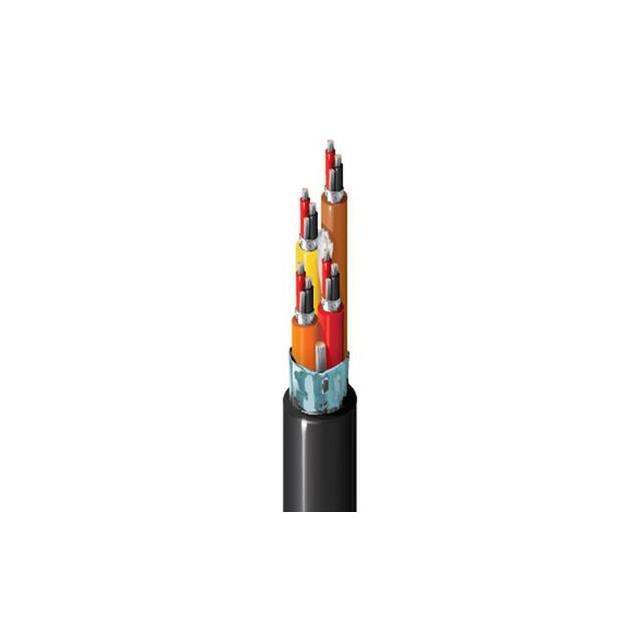

32 (16 Pair Twisted) Conductor Multi-Pair Cable Black 24 AWG Braid 250.0' (76.2m)
