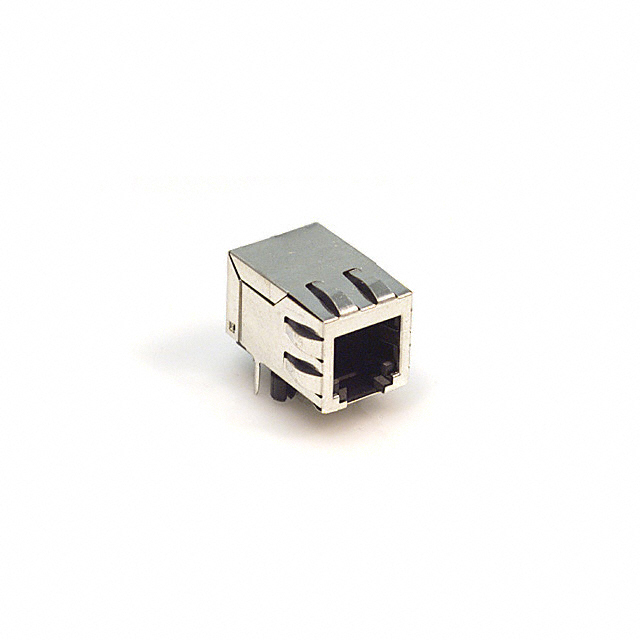

SS-6466S-A-PG4-BA-50

Active

BEL MAGNETIC SOLUTIONS

CONN MOD JACK 6P6C R/A SHIELDED

Search across all available documentation for this part.

Active

BEL MAGNETIC SOLUTIONS

CONN MOD JACK 6P6C R/A SHIELDED

Technical Specifications

Parameters and characteristics for this part

Specification	SS-6466S-A-PG4-BA-50

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Copper Alloy
Housing Material	Thermoplastic
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	6p6c (RJ11, RJ12, RJ14, RJ25)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	90 °
Shielding	Shielded, EMI Finger
Tab Direction	Down
Termination	Solder

Part	Orientation	LED Color	Shielding	Contact Finish	Number of Rows	Number of Ports	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Termination	Number of Positions/Contacts	Tab Direction	Housing Material	Contact Material	Connector Type	Features	Operating Temperature [Max]	Operating Temperature [Min]
BEL MAGNETIC SOLUTIONS SS-6466S-A-PGFLS	90 °	Does Not Contain LED	Shielded	Gold	1	1	Through Hole	0.76 Ám	30 Áin	Solder	6p6c (RJ11 RJ12 RJ14 RJ25)	Down	Thermoplastic	Copper Alloy	Jack	Board Lock Panel Stops	85 °C	-40 °C
BEL MAGNETIC SOLUTIONS SS-6466S-A-PG4-BA-50	90 °	Does Not Contain LED	Shielded EMI Finger	Gold	1	1	Through Hole	1.27 µm	50 µin	Solder	6p6c (RJ11 RJ12 RJ14 RJ25)	Down	Thermoplastic	Copper Alloy	Jack		85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jack Modular Connector 6p6c (RJ11, RJ12, RJ14, RJ25) 90° Angle (Right) Shielded, EMI Finger
