M20-6152005

Active

Harwin Inc.

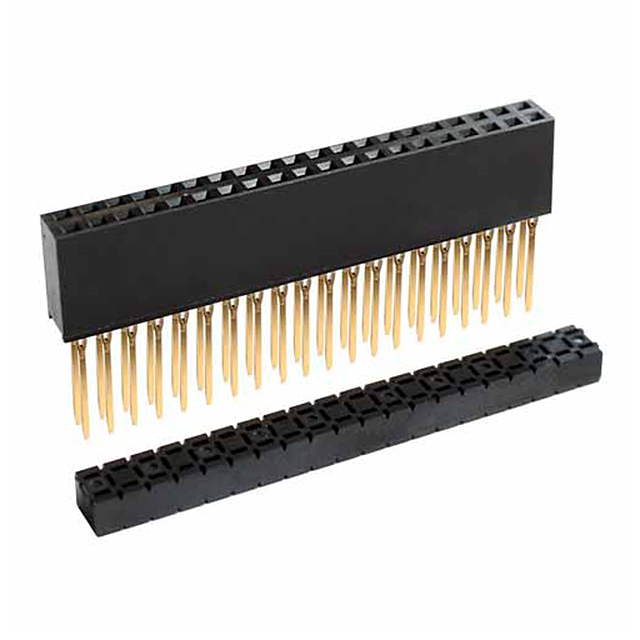

PCB RECEPTACLE, BOARD-TO-BOARD, 2.54 MM, 2 ROWS, 40 CONTACTS, THROUGH HOLE MOUNT, M20 SERIES

Search across all available documentation for this part.

Active

Harwin Inc.

PCB RECEPTACLE, BOARD-TO-BOARD, 2.54 MM, 2 ROWS, 40 CONTACTS, THROUGH HOLE MOUNT, M20 SERIES

Technical Specifications

Parameters and characteristics for this part

Specification	M20-6152005

Color	Black
Connector Style	PC/104
Connector Type	Stackthrough, Unkeyed + Organizer (PC/104)
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Press-Fit

Part	Contact Finish	Number of Positions Loaded	Color	Termination	Connector Style	Connector Type	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness	Material Flammability Rating	Mounting Type	Number of Rows	Number of Positions
Harwin Inc. M20-6152005	Gold	All	Black	Press-Fit	PC/104	Stackthrough Unkeyed + Organizer (PC/104)	2.54 mm	0.1 in	105 ░C	-55 °C	10 Áin	0.25 Ám	UL94 V-0	Through Hole	2	40
