1928314

Active

Phoenix Contact

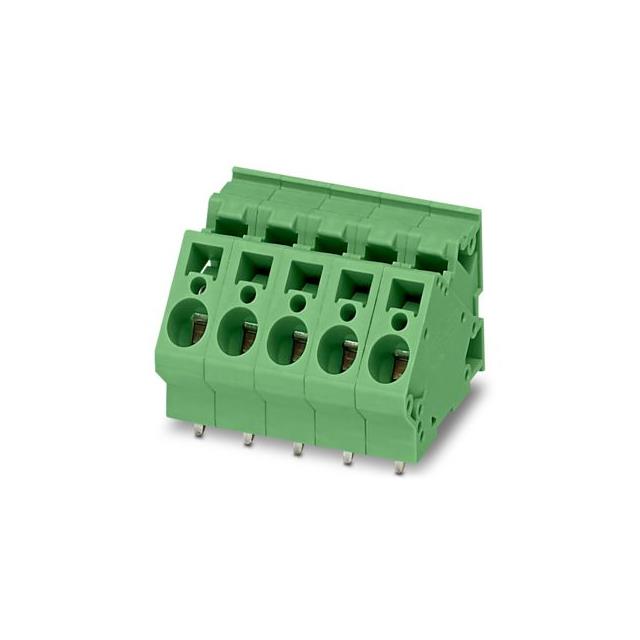

FIXED TERMINAL BLOCKS ZFKDS 4-7.5 GNYE

Search across all available documentation for this part.

Active

Phoenix Contact

FIXED TERMINAL BLOCKS ZFKDS 4-7.5 GNYE

Technical Specifications

Parameters and characteristics for this part

Specification	1928314

Color	Green, Yellow
Current	30 A
Mating Orientation	135 °
Mating Orientation	45 °
Mounting Type	Through Hole
Number of Levels	1
Positions Per Level	1
Voltage	300 V
Wire Gauge [Max]	24 AWG
Wire Gauge [Min]	10 AWG
Wire Termination	Screwless - Spring Cage, Tension Clamp

Fixed Terminal Blocks ZFKDS 4-7.5 GNYE

Part	Wire Gauge [Max]	Wire Gauge [Min]	Current	Mating Orientation	Mating Orientation	Wire Termination	Positions Per Level	Voltage	Mounting Type	Number of Levels	Color
Phoenix Contact 1928314	24 AWG	10 AWG	30 A	135 °	45 °	Screwless - Spring Cage Tension Clamp	1	300 V	Through Hole	1	Green Yellow

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fixed Terminal Blocks ZFKDS 4-7.5 GNYE

Technical documentation and resources
