TR9KI2700T00CIMR6B

Active

GlobTek, Inc.

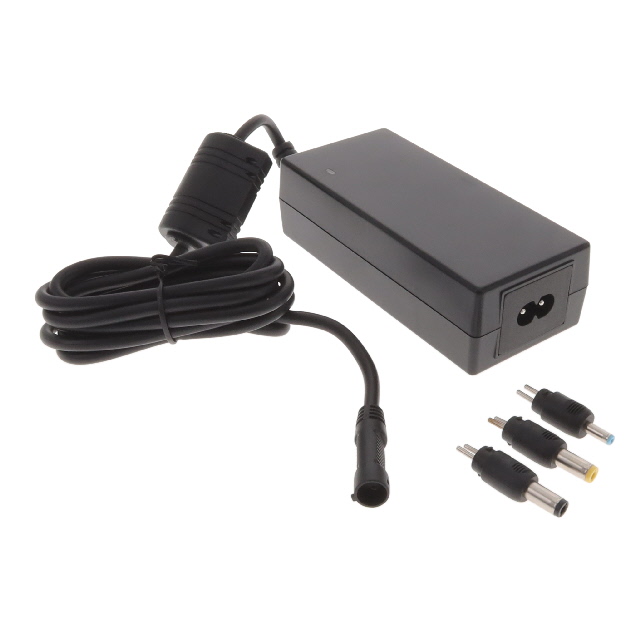

AC/DC DESKTOP ADAPTER 24V 65W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 24V 65W

Technical Specifications

Parameters and characteristics for this part

Specification	TR9KI2700T00CIMR6B

Applications	ITE (Commercial), Medical
Approval Agency	BSMI, CB, cETLus, CE, S-Mark, VCCI, PSE, UKRSepro, EAC, ETL, FCC
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	2.7 A
Efficiency	CoC Tier 2, Level VI
Form	Desktop (Class II)
Input Connector	IEC 320-C8
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug Kit, 1.3mm x 3.5mm
Polarization [custom]	Negative
Polarization [custom]	Positive
Power (Watts)	65 W
Region Utilized	International
Size / Dimension [x]	4.63 in
Size / Dimension [x]	117.5 mm
Size / Dimension [y]	2.11 in
Size / Dimension [y]	53.5 mm
Size / Dimension [z]	1.35 "
Size / Dimension [z]	34.2 mm
Standard Number	60601-1-2, 62368-1, 60601-1-11
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	24 V

Part	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Current - Output (Max) [Max]	Input Type	Efficiency	Cord Length	Cord Length	Operating Temperature [Min]	Operating Temperature [Max]	Output Connector	Input Connector	No Load Power Consumption [Max]	Form	Polarization [custom]	Polarization [custom]	Standard Number	Region Utilized	Power (Watts)	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output	Approval Agency	Applications	Polarization	Output Connector [diameter]	Output Connector [z]
GlobTek, Inc. TR9KI2700T00CIMR6B	1.35 "	34.2 mm	2.11 in	4.63 in	117.5 mm	53.5 mm	2.7 A	Cord	CoC Tier 2 Level VI	1.5 m	59 in	-20 C	40 °C	1.3mm x 3.5mm Barrel Plug Kit	IEC 320-C8	150 mW	Desktop (Class II)	Negative	Positive	60601-1-11 60601-1-2 62368-1	International	65 W	90 VAC	264 VAC	24 V	BSMI CB CE cETLus EAC ETL FCC PSE S-Mark UKRSepro VCCI	ITE (Commercial) Medical
GlobTek, Inc. TR9KI2700CCPCIMR6B	1.35 "	34.2 mm	2.11 in	4.63 in	117.5 mm	53.5 mm	2.7 A	Cord	CoC Tier 2 Level VI	1.53 m	60.2 in	-20 C	40 °C	Barrel Plug	IEC 320-C8	150 mW	Desktop (Class II)			60601-1-11 60601-1-2 62368-1	International	65 W	90 VAC	264 VAC	24 V	BSMI CB CE cETLus EAC ETL FCC PSE S-Mark UKRSepro VCCI	ITE (Commercial) Medical	Positive Center	2.1 mm 5.5 mm	11 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

24V 65 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
