SD15C.TCT

Active

Semtech Corporation

TRANS VOLTAGE SUPPRESSOR DIODE, 350W, 15V V(RWM), BIDIRECTIONAL, 2 ELEMENT, SILICON, LEAD FREE PACKAGE-2

Search across all available documentation for this part.

Active

Semtech Corporation

TRANS VOLTAGE SUPPRESSOR DIODE, 350W, 15V V(RWM), BIDIRECTIONAL, 2 ELEMENT, SILICON, LEAD FREE PACKAGE-2

Technical Specifications

Parameters and characteristics for this part

Specification	SD15C.TCT

Applications	General Purpose
Bidirectional Channels [custom]	1
Capacitance @ Frequency	75 pF
Current - Peak Pulse (10/1000µs)	12 A
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-55 °C

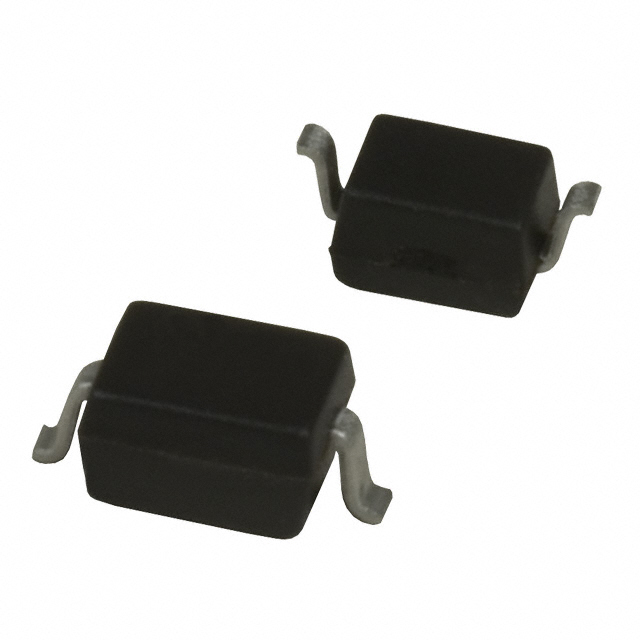

Package / Case	SOD-323, SC-76
Power - Peak Pulse	350 W
Power Line Protection	False
Supplier Device Package	SOD-323
Type	Zener
Voltage - Breakdown (Min) [Min]	16.7 V
Voltage - Clamping (Max) @ Ipp [Max]	29 V
Voltage - Reverse Standoff (Typ)	15 V

Part	Mounting Type	Power - Peak Pulse	Supplier Device Package	Type	Voltage - Clamping (Max) @ Ipp [Max]	Power Line Protection	Voltage - Reverse Standoff (Typ)	Current - Peak Pulse (10/1000µs)	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Bidirectional Channels [custom]	Voltage - Breakdown (Min) [Min]	Capacitance @ Frequency	Package / Case
Semtech Corporation SD15C.TCT	Surface Mount	350 W	SOD-323	Zener	29 V		15 V	12 A	125 ¯C	-55 °C	General Purpose	1	16.7 V	75 pF	SC-76 SOD-323

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

29V Clamp 12A (8/20µs) Ipp Tvs Diode Surface Mount SOD-323
