OPB748WZ

Active

TT Electronics/Optek Technology

SENSOR REFLECTIVE SWITCH

Search across all available documentation for this part.

Active

TT Electronics/Optek Technology

SENSOR REFLECTIVE SWITCH

Technical Specifications

Parameters and characteristics for this part

Specification	OPB748WZ

Current - DC Forward (If) (Max) [Max]	40 mA
Mounting Type	Chassis Mount
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Output Type	Transistor, Base-Emitter Resistor
Package / Case	Wire Leads, Module
Sensing Distance	0.3 in
Sensing Distance	7.62 mm
Sensing Method	Reflective
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V

Part	Voltage - Collector Emitter Breakdown (Max) [Max]	Output Type	Package / Case	Mounting Type	Sensing Method	Current - DC Forward (If) (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Sensing Distance	Sensing Distance
TT Electronics/Optek Technology OPB748WZ	30 V	Transistor Base-Emitter Resistor	Module Wire Leads	Chassis Mount	Reflective	40 mA	-40 °C	80 C	0.3 in	7.62 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

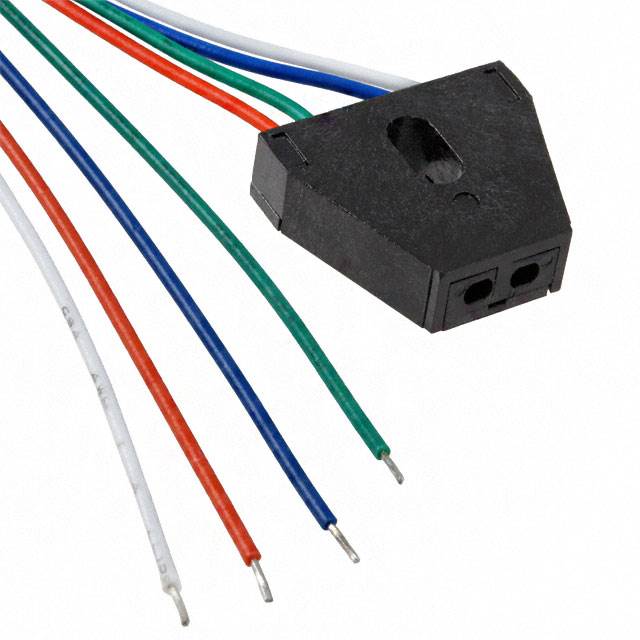

Reflective Optical Sensor 0.300" (7.62mm) Module, Wire Leads
