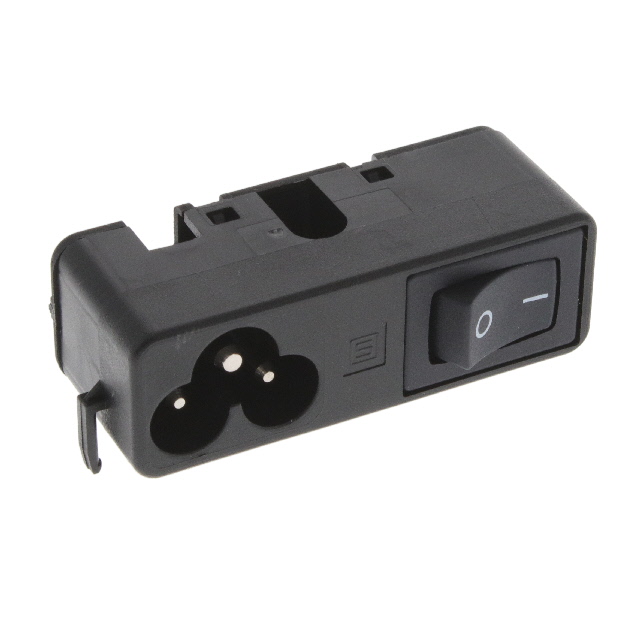

CMF3.1132.12

Obsolete

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C6 PANEL

Search across all available documentation for this part.

Obsolete

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C6 PANEL

Technical Specifications

Parameters and characteristics for this part

Specification	CMF3.1132.12

Accomodates a Fuse	False
Approval Agency	cULus, CCC, VDE
Connector Style	IEC 320-C6
Connector Type	Receptacle, Male Pins - Module
Current Rating - Appliance Inlet	2.5 A
Features	Terminating Cover
Filter Type	Unfiltered - Commercial
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount, Snap-In
Panel Thickness	2 mm
Panel Thickness	0.079 in
Switch Features	Switch On-Off
Termination	Solder
Voltage Rating - Appliance Inlet	250 VAC

Part	Panel Thickness	Panel Thickness	Voltage Rating - Appliance Inlet	Mounting Type	Approval Agency	Filter Type	Features	Termination	Switch Features	Current Rating - Appliance Inlet	Accomodates a Fuse	Connector Style	Material Flammability Rating	Connector Type	Ingress Protection
SCHURTER Inc. CMF3.1132.12	2 mm	0.079 in	250 VAC	Panel Mount Snap-In Through Hole Right Angle	CCC cULus VDE	Unfiltered - Commercial	Terminating Cover	Solder	Switch On-Off	2.5 A		IEC 320-C6	UL94 V-0	Receptacle Male Pins - Module	IP40

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Pins - Module IEC 320-C6 Panel Mount, Snap-In; Through Hole, Right Angle
