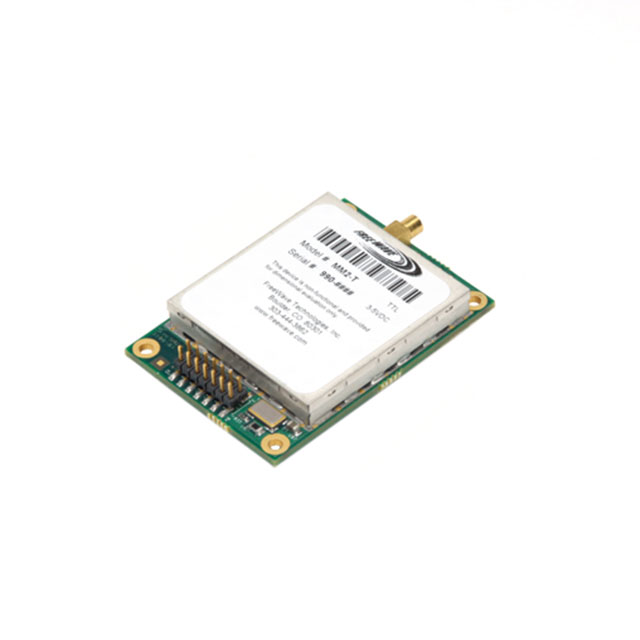

MM2-LV-T-LF

Obsolete

FreeWave Technologies

RF TXRX MOD ISM<1GHZ CHIP CHAS

Search across all available documentation for this part.

Obsolete

FreeWave Technologies

RF TXRX MOD ISM<1GHZ CHIP CHAS

Technical Specifications

Parameters and characteristics for this part

Part	Serial Interfaces	Sensitivity	RF Family/Standard	Data Rate	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Modulation	Current - Receiving	Antenna Type	Current - Transmitting	Frequency [Min]	Frequency [Max]	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Voltage - Supply
FreeWave Technologies MM2-P-T-U	Ethernet	-108 dBm	General ISM < 1GHz	153.6 kbps	Chassis Mount	85 °C	-40 °C	GFSK	205 mA	Integrated Trace	850 mA	902 MHz	928 MHz	Module
FreeWave Technologies MM2-MR-R-U		-107 dBm	General ISM < 1GHz	153.6 kbps	Chassis Mount	85 °C	-40 °C	GFSK	100 mA	Integrated Trace	900 mA	902 MHz	928 MHz	Module	6.5 VDC	30 VDC
FreeWave Technologies MM2-P-T-SR007	Ethernet Serial TTL	-108 dBm	General ISM < 1GHz	153.6 kbps	Chassis Mount	85 °C	-40 °C	GFSK	205 mA	Integrated Trace	850 mA	902 MHz	928 MHz	Module
FreeWave Technologies MM2-P-T-U-SR001	Ethernet	-108 dBm	General ISM < 1GHz	153.6 kbps	Chassis Mount	85 °C	-40 °C	GFSK	205 mA	Integrated Trace	850 mA	902 MHz	928 MHz	Module
FreeWave Technologies MM2-LV-T-LF	Serial TTL	-108 dBm	General ISM < 1GHz	153.6 kbps	Chassis Mount	85 °C	-40 °C	GFSK	125 mA	Integrated Chip	1.175 A	902 MHz	928 MHz	Module			3.5 V
FreeWave Technologies MM2-T-U	Serial TTL	-108 dBm	General ISM < 1GHz	153.6 kbps	Chassis Mount	85 °C	-40 °C	GFSK	90 mA	Integrated Chip	855 mA	902 MHz	928 MHz	Module
FreeWave Technologies MM2-T-RX	Serial TTL	-108 dBm	General ISM < 1GHz	153.6 kbps	Chassis Mount	85 °C	-40 °C	GFSK	90 mA	Integrated Chip	855 mA	902 MHz	928 MHz	Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General ISM < 1GHz Transceiver Module 902MHz ~ 928MHz Integrated, Chip Chassis Mount
