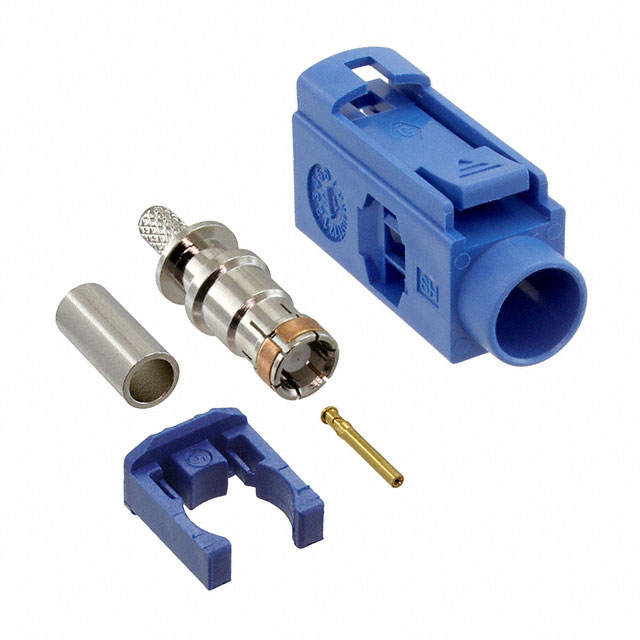

RF55-34C-T-02-50-SH

Active

Adam Tech

FAKRA JACK SMB TYPE: STRAIGHT FO

Deep-Dive with AI

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RF55-34C-T-02-50-SH

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-174, 316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB, Fakra
Connector Type	Male Pin, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Latch Lock
Features	Code C
Frequency - Max [Max]	4 GHz
Housing Color	Blue
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp

RF55-34 Series

Part	Housing Color	Center Contact Plating	Fastening Type	Connector Type	Cable Group	Number of Ports	Body Material	Connector Style	Shield Termination	Dielectric Material	Frequency - Max [Max]	Contact Termination	Operating Temperature [Max]	Operating Temperature [Min]	Features	Impedance	Body Finish	Center Contact Material	Mounting Type
Adam Tech RF55-34L-T-02-50-SH	Carmine Red	Gold	Latch Lock	Jack Male Pin	316 RG-174	1	Brass	Fakra SMB	Crimp	Polytetrafluoroethylene (PTFE)	4 GHz	Crimp	85 °C	-40 °C	Code L	50 Ohms	Nickel	Beryllium Copper	Free Hanging (In-Line)
Adam Tech RF55-34I-T-02-50-SH	Beige	Gold	Latch Lock	Jack Male Pin	316 RG-174	1	Brass	Fakra SMB	Crimp	Polytetrafluoroethylene (PTFE)	4 GHz	Crimp	85 °C	-40 °C	Code I	50 Ohms	Nickel	Beryllium Copper	Free Hanging (In-Line)
Adam Tech RF55-34G-T-02-50-SH	Gray	Gold	Latch Lock	Jack Male Pin	316 RG-174	1	Brass	Fakra SMB	Crimp	Polytetrafluoroethylene (PTFE)	4 GHz	Crimp	85 °C	-40 °C	Code G	50 Ohms	Nickel	Beryllium Copper	Free Hanging (In-Line)
Adam Tech RF55-34M-T-02-50-SH	Orange Pastel	Gold	Latch Lock	Jack Male Pin	316 RG-174	1	Brass	Fakra SMB	Crimp	Polytetrafluoroethylene (PTFE)	4 GHz	Crimp	85 °C	-40 °C	Code M	50 Ohms	Nickel	Beryllium Copper	Free Hanging (In-Line)
Adam Tech RF55-34D-T-02-50-SH	Bordeaux Violet	Gold	Latch Lock	Jack Male Pin	316 RG-174	1	Brass	Fakra SMB	Crimp	Polytetrafluoroethylene (PTFE)	4 GHz	Crimp	85 °C	-40 °C	Code D	50 Ohms	Nickel	Beryllium Copper	Free Hanging (In-Line)
Adam Tech RF55-34Z-T-02-50-G-SH		Gold	Latch Lock	Jack Male Pin	316 RG-174	1	Brass	Fakra SMB	Crimp	Polytetrafluoroethylene (PTFE)	4 GHz	Crimp	85 °C	-40 °C	Code Z	50 Ohms	Nickel	Beryllium Copper	Free Hanging (In-Line)
Adam Tech RF55-34C-T-02-50-SH	Blue	Gold	Latch Lock	Jack Male Pin	316 RG-174	1	Brass	Fakra SMB	Crimp	Polytetrafluoroethylene (PTFE)	4 GHz	Crimp	85 °C	-40 °C	Code C	50 Ohms	Nickel	Beryllium Copper	Free Hanging (In-Line)
Adam Tech RF55-34K-T-02-50-SH	Curry	Gold	Latch Lock	Jack Male Pin	316 RG-174	1	Brass	Fakra SMB	Crimp	Polytetrafluoroethylene (PTFE)	4 GHz	Crimp	85 °C	-40 °C	Code K	50 Ohms	Nickel	Beryllium Copper	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 3.08
		10	$ 2.61
		25	$ 2.45
		50	$ 2.33
		100	$ 2.22
		250	$ 2.16
		300	$ 2.06
		500	$ 1.98
		1000	$ 1.89
		2500	$ 1.77
