DG1209EVKIT#

Active

Analog Devices Inc./Maxim Integrated

DG1209 EVALUATION KIT

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

DG1209 EVALUATION KIT

Technical Specifications

Parameters and characteristics for this part

Part	Utilized IC / Part	Primary Attributes	Primary Attributes	Supplied Contents	Embedded	Function	Type	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	Charge Injection	Package / Case [x]	Package / Case	Package / Case [y]	-3db Bandwidth	Multiplexer/Demultiplexer Circuit	Mounting Type	Voltage - Supply, Dual (V±) [Max]	Voltage - Supply, Dual (V±) [Min]	Channel-to-Channel Matching (ΔRon)	Number of Circuits	On-State Resistance (Max) [Max]	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Crosstalk	Current - Leakage (IS(off)) (Max)	Supplier Device Package
Analog Devices Inc./Maxim Integrated DG1209EVKIT#	DG1209	20 V 100 mA	Tri-Output DC Power Supply	Board(s)		Multiplexer	Interface
Analog Devices Inc./Maxim Integrated DG1209EUE+								10 V	20 V	0.5 pC	0.173 in	16-TSSOP	4.4 mm	250 MHz	4:1	Surface Mount	15 V	-15 V	30 Ohm	2	160 Ohms	400 ns	400 ns	85 °C	-40 °C	15 pF	10 pF	-80 dB	30 µA	16-TSSOP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 60.00

General part information

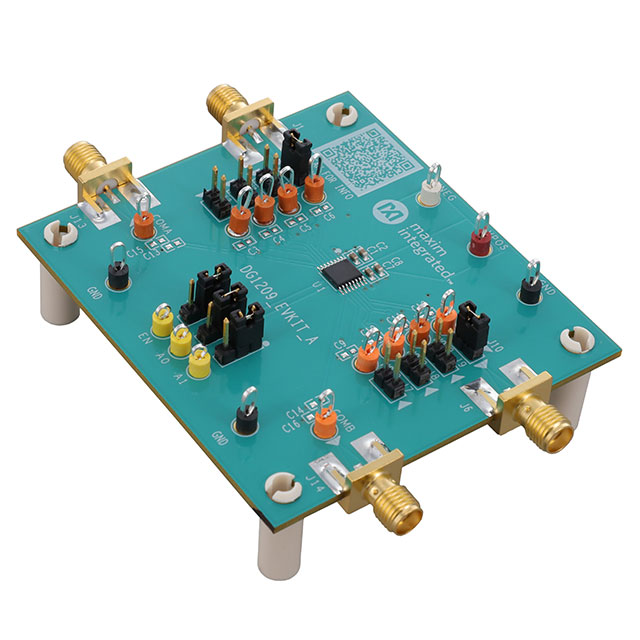

DG1209 Multiplexer Interface Evaluation Board
