H8MMH-2006G
ActiveAssmann WSW Components
DIP CABLE - HDM20H/AE20G/HDM20H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
H8MMH-2006G
ActiveAssmann WSW Components
DIP CABLE - HDM20H/AE20G/HDM20H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | H8MMH-2006G |
|---|---|
| Cable Termination | IDC |
| Connector Type | DIP to DIP, Reversed |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Length | 152.4 mm |
| Length | 6 " |
| Length | 0.5 ' |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
| Usage | Board In, Socket (0.1") |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.64 | |
| 10 | $ 1.43 | |||
| 25 | $ 1.37 | |||
| 50 | $ 1.34 | |||
| 100 | $ 1.27 | |||
| 250 | $ 1.15 | |||
| 500 | $ 1.06 | |||
| 1000 | $ 0.91 | |||
| 2500 | $ 0.85 | |||
Description
General part information
H8MMH-20 Series

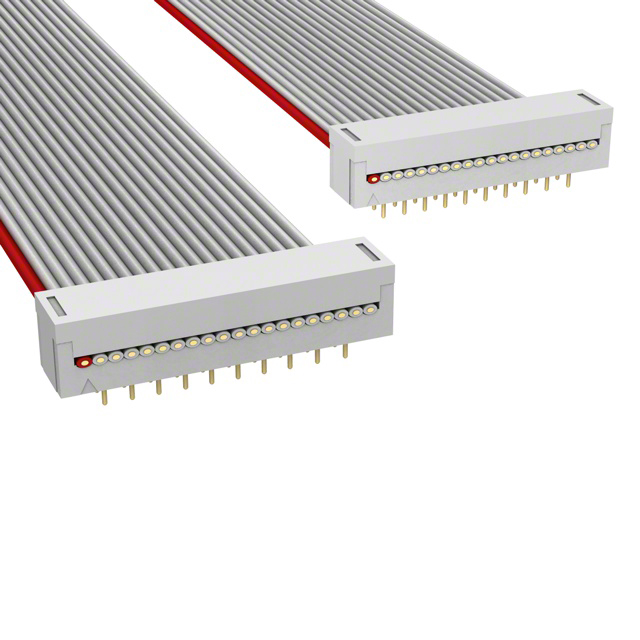

20 Position Cable Assembly Rectangular DIP to DIP, Reversed 0.500' (152.40mm, 6.00")
