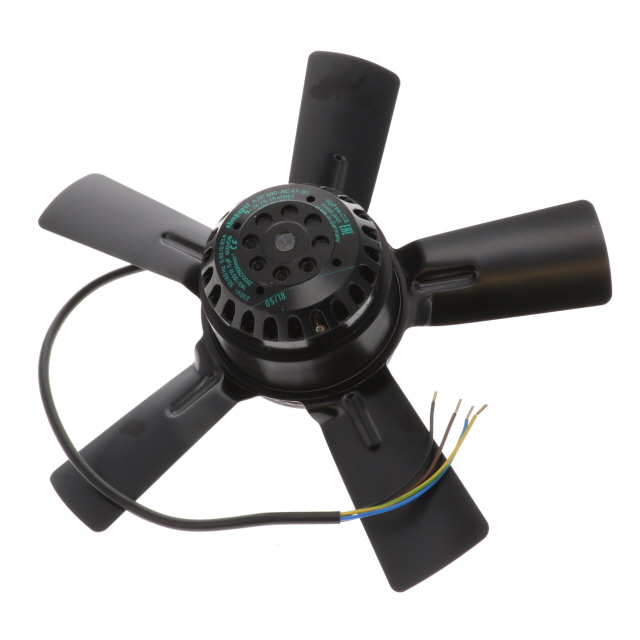

A2E300-AC47-01

Active

ebm-papst Inc.

AC AXIAL FAN

Search across all available documentation for this part.

Active

ebm-papst Inc.

AC AXIAL FAN

Technical Specifications

Parameters and characteristics for this part

Specification	A2E300-AC47-01

Air Flow	40.24 m³/min
Air Flow	1437.2 CFM
Approval Agency	EAC, CCC, UL, CSA, CE
Bearing Type	Ball
Current Rating (Amps) [Max]	0.88 A
Current Rating (Amps) [Min]	0.83 A
Fan Type	Tubeaxial
Features	Capacitor, Thermal Overload Protector (TOP)
Ingress Protection	IP44
Material - Blade	Steel
Noise	75 dB(A)
Operating Temperature [Max]	50 °C
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	200 W
RPM	2900 RPM
Size / Dimension	Round
Size / Dimension [diameter]	300 mm
Static Pressure	0.602 in H2O
Static Pressure	150 Pa
Termination	4 Wire Leads
Voltage - Rated	230 VAC
Width [x]	99.5 mm

Part	Noise	RPM	Material - Blade	Ingress Protection	Air Flow	Air Flow	Current Rating (Amps) [Max]	Current Rating (Amps) [Min]	Static Pressure	Static Pressure	Voltage - Rated	Size / Dimension	Size / Dimension [diameter]	Width [x]	Power (Watts)	Approval Agency	Features	Bearing Type	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Fan Type	Termination
ebm-papst Inc. A2E300-AC47-01	75 dB(A)	2900 RPM	Steel	IP44	40.24 m³/min	1437.2 CFM	0.88 A	0.83 A	0.602 in H2O	150 Pa	230 VAC	Round	300 mm	99.5 mm	200 W	CCC CE CSA EAC UL	Capacitor Thermal Overload Protector (TOP)	Ball	50 °C	-25 °C	-25 °C	50 °C	Tubeaxial	4 Wire Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 230VAC Round - 300mm Dia Ball 1437.2 CFM (40.24m³/min) 4 Wire Leads
