GSF1.0002.51

Active

SCHURTER Inc.

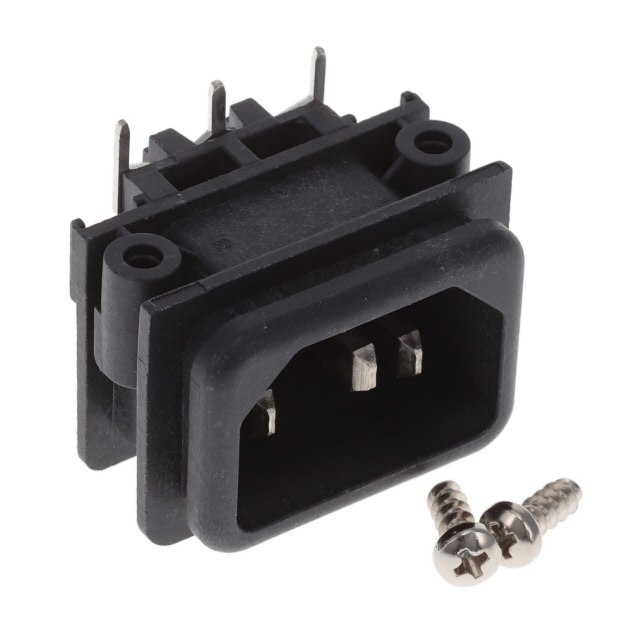

POWER ENTRY MODULE UNFILTERED M 3 POS 250VAC 10A RA 1 PORT

Search across all available documentation for this part.

Active

SCHURTER Inc.

POWER ENTRY MODULE UNFILTERED M 3 POS 250VAC 10A RA 1 PORT

Technical Specifications

Parameters and characteristics for this part

Specification	GSF1.0002.51

Accomodates a Fuse	False
Approval Agency	CCC, UL, CSA, ENEC
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	10 A
Features	Mounting Hardware
Filter Type	Unfiltered - Commercial
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange, Through Hole, Right Angle
Panel Thickness [x]	2.5 mm
Panel Thickness [x]	0.098 in
Termination	Solder
Voltage Rating - Appliance Inlet	250 VAC

AC Power Entry Modules PCB Mount

Part	Ingress Protection	Mounting Type	Termination	Connector Type	Voltage Rating - Appliance Inlet	Approval Agency	Material Flammability Rating	Panel Thickness [x]	Panel Thickness [x]	Filter Type	Connector Style	Current Rating - Appliance Inlet	Features	Panel Thickness	Panel Thickness	Fuse Holder, Drawer	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Panel Thickness [custom]	Panel Thickness [custom]
SCHURTER Inc. GSF1.0002.51	IP40	Panel Mount Flange Through Hole Right Angle	Solder	Male Blades Receptacle	250 VAC	CCC CSA ENEC UL	UL94 V-0	2.5 mm	0.098 in	Unfiltered - Commercial	IEC 320-C14	10 A	Mounting Hardware
SCHURTER Inc. GSF1.2002.01	IP40	Panel Mount Flange Through Hole Right Angle	Solder	Receptacle Male Blades - Module	250 VAC	CCC CSA ENEC UL	UL94 V-0			Unfiltered - Commercial	IEC 320-C14	10 A	Mounting Hardware	0.236 in	6 mm	Fuse Holder	30.3 mm	22.3 mm
SCHURTER Inc. GSF1.0002.41	IP40	Panel Mount Flange Through Hole Right Angle	Solder	Male Blades Receptacle	250 VAC	CCC CSA ENEC UL	UL94 V-0			Unfiltered - Commercial	IEC 320-C14	10 A	Mounting Hardware	0.079 in	2 mm
SCHURTER Inc. GSF1.0002.31	IP40	Panel Mount Flange Through Hole Right Angle	Solder	Male Blades Receptacle	250 VAC	CCC CSA ENEC UL	UL94 V-0			Unfiltered - Commercial	IEC 320-C14	10 A	Mounting Hardware						0.059 in	1.5 mm
SCHURTER Inc. GSF1.0002.01	IP40	Panel Mount Flange Through Hole Right Angle	Solder	Male Blades Receptacle	250 VAC	CCC CSA ENEC UL	UL94 V-0			Unfiltered - Commercial	IEC 320-C14	10 A	Mounting Hardware	0.236 in	6 mm		30.3 mm	22.3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC Power Entry Modules PCB Mount
