100024512
ActiveTelegartner Inc
ADAPT STR 7-16F - 2.2-5MS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
100024512
ActiveTelegartner Inc
ADAPT STR 7-16F - 2.2-5MS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 100024512 |
|---|---|
| Adapter Series | , 0.4375 DIN |
| Adapter Type | Plug to Jack |
| Center Contact Material | Beryllium Copper |
| Center Gender | Male to Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | 2.2/5 Plug, Male Pin |
| Convert To (Adapter End) | Female Socket, 7/16 Jack |
| Frequency - Max [Max] | 6000 MHz |
| Impedance | 50 Ohms |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 70.04 | |
| 5 | $ 66.54 | |||
| 10 | $ 63.04 | |||
| 25 | $ 60.24 | |||
| 50 | $ 55.33 | |||
| 100 | $ 53.93 | |||
| 250 | $ 50.78 | |||
Description
General part information
J01122 Series

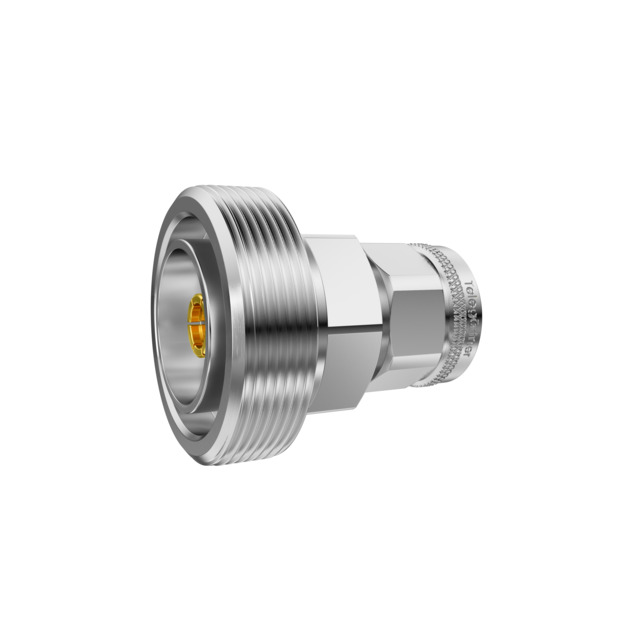

Adapter Coaxial Connector 2.2/5 Plug, Male Pin To 7/16 Jack, Female Socket 50 Ohms
