SC0683
ActiveSBC 1.5GHZ 4 CORE 4GB RAM
Deep-Dive with AI
Search across all available documentation for this part.
SC0683
ActiveSBC 1.5GHZ 4 CORE 4GB RAM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SC0683 |
|---|---|
| Core Processor | ARM Cortex-A72 |
| Digital I/O Lines | 28 |
| Ethernet | GbE |
| Expansion Site/Bus | I2C, UART, SPI |
| Number of Cores | 4 |
| RAM Capacity/Installed | 4 GB |
| Size / Dimension [x] | 55 mm |
| Size / Dimension [x] | 2.17 " |
| Size / Dimension [y] | 1.57 " |
| Size / Dimension [y] | 40 mm |
| Speed | 1.5 GHz |
| Storage Interface | SDIO |
| USB | USB 2.0 (1) |
| Video Outputs | CSI, HDMI, DSI, DPI |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 50.00 | |
Description
General part information
CM4004000 Series

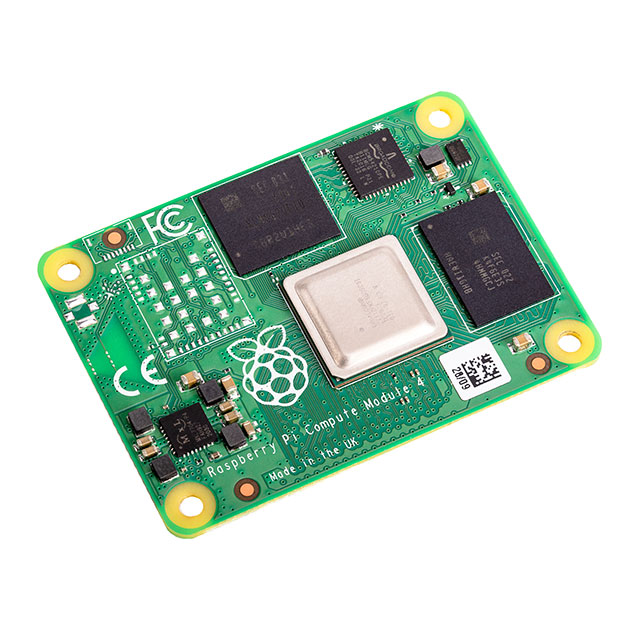

The Raspberry Pi Compute Module 4 Rev 5 CM4004000 lite is a high-performance embedded computer ideal for a variety of applications. Featuring a 1.5GHz quad-core ARM Cortex-A72 processor and 4GB of RAM, it delivers significant processing power and efficient multitasking capabilities. Connectivity options include GbE Ethernet and USB 2.0, along with expansion sites for I2C, SPI, and UART interfaces. With 28 digital I/O lines and video outputs such as CSI, DPI, DSI, and HDMI, this SBC offers many different interfacing options for all of your projects.
Documents
Technical documentation and resources
