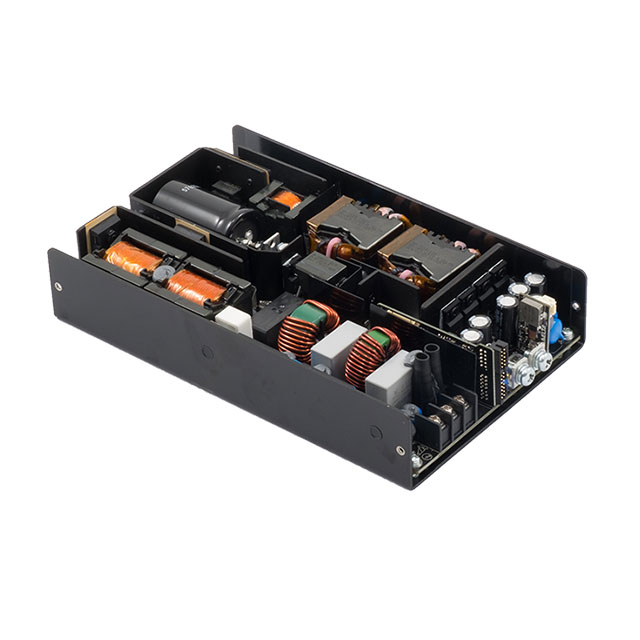

MEU-600C24T AAA

Active

Delta Electronics

AC/DC CONVERTER 24V 600W

Search across all available documentation for this part.

Active

Delta Electronics

AC/DC CONVERTER 24V 600W

Technical Specifications

Parameters and characteristics for this part

Specification	MEU-600C24T AAA

Applications	ITE (Commercial), Medical
Approval Agency	TUV, UL, SIQ, CE, EN, CB Scheme
Current - Output 1	25 A
Efficiency	93.5 %
Features	PMBus™, Standby Output, Remote On/Off, Universal Input, PFC, Adjustable Output
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	600 W
Size / Dimension [x]	203.2 mm
Size / Dimension [x]	8 "
Size / Dimension [y]	5 "
Size / Dimension [y]	127 mm
Size / Dimension [z]	1.57 "
Size / Dimension [z]	40 mm
Standard Number	55011, 50581, 55032, 60950-1, 60601-1
Type	Open Frame, Conformal Coated
Voltage - Isolation	4000 V
Voltage - Output 1	24 V

Part	Current - Output 1	Minimum Load Required	Voltage - Output 1	Standard Number	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Applications	Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Approval Agency	Power (Watts)	Number of Outputs	Efficiency	Mounting Type	Features
Delta Electronics MEU-600C24T AAA	25 A		24 V	50581 55011 55032 60601-1 60950-1	5 "	127 mm	203.2 mm	8 "	1.57 "	40 mm	ITE (Commercial) Medical	Conformal Coated Open Frame	-20 °C	70 °C	4000 V	CB Scheme CE EN SIQ TUV UL	600 W	1	93.5 %	Chassis Mount	Adjustable Output PFC PMBus™ Remote On/Off Standby Output Universal Input

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame, Conformal Coated AC DC Converters 1 Output 24V 85 ~ 264 VAC Input
