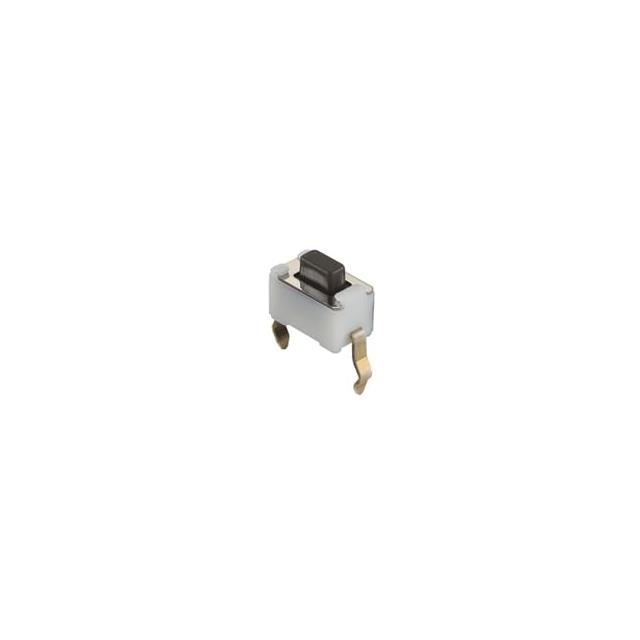

SKHLADA010

Active

Alps Alpine

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

Alps Alpine

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	SKHLADA010

Actuator Height off PCB, Vertical	5 mm
Actuator Orientation	Top Actuated
Actuator Type	Rectangular Button
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Non-Illuminated
Mounting Type	Through Hole
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Outline [x]	6 mm
Outline [y]	3.5 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	PC Pin

Part	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Orientation	Actuator Type	Illumination	Actuator Height off PCB, Vertical	Switch Function	Outline [y]	Outline [x]	Contact Rating @ Voltage	Mounting Type	Termination Style	Switch Travel
Alps Alpine SKHLADA010	SPST-NO	90 °C	-40 °C	Top Actuated	Rectangular Button	Non-Illuminated	5 mm	Off-Mom	3.5 mm	6 mm	0.05 A 12 VDC	Through Hole	PC Pin	0.25 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
