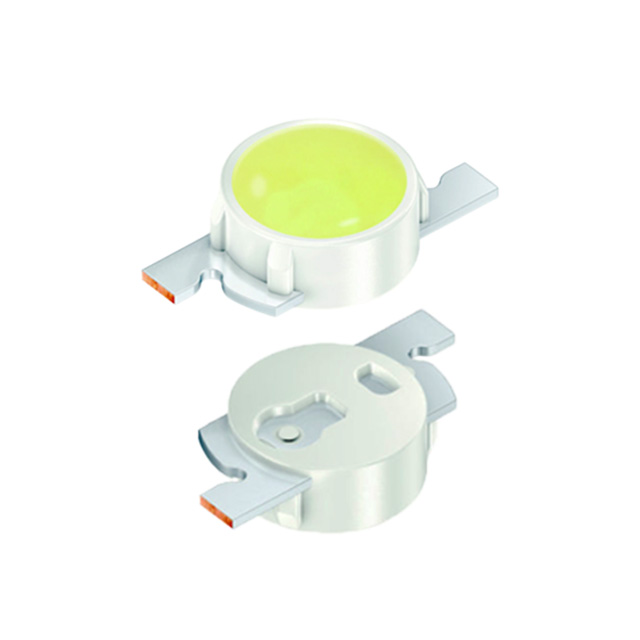

LW P4SG-V2AB-FK0PN0-46-20-R18-Z
Activeams-OSRAM USA INC.
LED WHITE DIFFUSED SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LW P4SG-V2AB-FK0PN0-46-20-R18-Z |
|---|---|
| Color | White |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 0.8 mm |
| Lens Size [diameter] | 1.6 mm |
| Lens Transparency | Diffused |
| Millicandela Rating | 1350 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, Flat Leads |
| Size / Dimension [x] | 3.4 mm |
| Size / Dimension [y] | 1.9 mm |
| Supplier Device Package | SMD |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LWP4SG Series
White LED Indication - Discrete 3.2V 2-SMD, Flat Leads
