15SH-B-07-TS-SMT-T/R

Active

Adam Tech

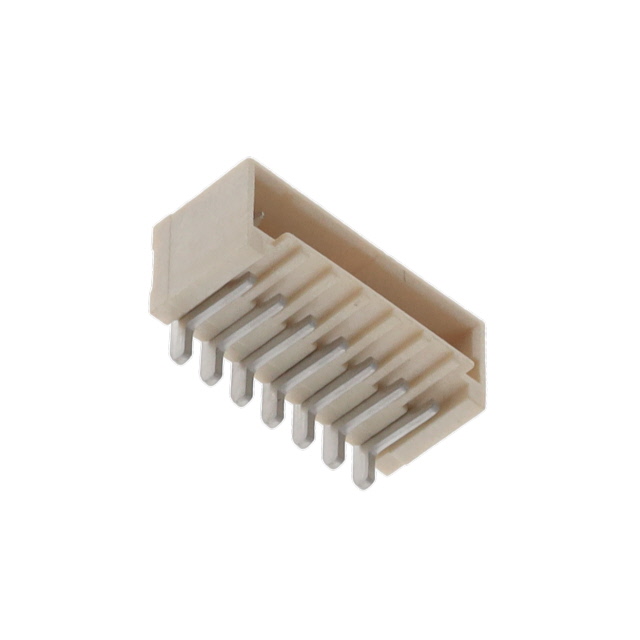

CONN HEADER SMD 7POS 1.5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications +1

15SH-B-07-TS-SMT-T/R

Active

Adam Tech

CONN HEADER SMD 7POS 1.5MM

Deep-Dive with AI

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	15SH-B-07-TS-SMT-T/R

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1.5 A
Fastening Type	Friction Lock
Insulation Color	Ivory
Insulation Height	0.226 in
Insulation Height	5.74 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	7
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	100 VAC

15SH-B Series

Part	Fastening Type	Number of Positions	Mounting Type	Contact Material	Shrouding	Insulation Height	Insulation Height	Material Flammability Rating	Contact Shape	Termination	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Style	Number of Rows	Voltage Rating	Insulation Color	Current Rating (Amps)	Contact Type	Connector Type
Adam Tech 15SH-B-08-TR-SMT-T/R	Friction Lock	8	Surface Mount Right Angle	Brass	Shrouded - 4 Wall	4.45 mm	0.175 in	UL94 V-0	Square	Solder	Tin	-25 °C	85 °C	All	Board to Cable/Wire	1	350 VAC	Natural	3 A	Male Pin	Header
Adam Tech 15SH-B-03-TR-SMT-T/R	Friction Lock		Surface Mount Right Angle	Brass	Shrouded - 4 Wall	4.45 mm	0.175 in	UL94 V-0	Square	Solder	Tin	-25 °C	85 °C	All	Board to Cable/Wire	1	350 VAC	Natural	3 A	Male Pin	Header
Adam Tech 15SH-B-09-TR-SMT-T/R	Friction Lock	9	Surface Mount Right Angle	Brass	Shrouded - 4 Wall	4.45 mm	0.175 in	UL94 V-0	Square	Solder	Tin	-25 °C	85 °C	All	Board to Cable/Wire	1	350 VAC	Natural	3 A	Male Pin	Header
Adam Tech 15SH-B-07-TS-SMT-T/R	Friction Lock	7	Surface Mount	Brass	Shrouded - 4 Wall	5.74 mm	0.226 in	UL94 V-0	Square	Solder	Tin	-25 °C	85 °C	All	Board to Cable/Wire	1	100 VAC	Ivory	1.5 A	Male Pin	Header
Adam Tech 15SH-B-07-TR-SMT-T/R	Friction Lock	7	Surface Mount Right Angle	Brass	Shrouded - 4 Wall	4.45 mm	0.175 in	UL94 V-0	Square	Solder	Tin	-25 °C	85 °C	All	Board to Cable/Wire	1	350 VAC	Natural	3 A	Male Pin	Header
Adam Tech 15SH-B-06-TR-SMT-T/R	Friction Lock	6	Surface Mount Right Angle	Brass	Shrouded - 4 Wall	4.45 mm	0.175 in	UL94 V-0	Square	Solder	Tin	-25 °C	85 °C	All	Board to Cable/Wire	1	350 VAC	Natural	3 A	Male Pin	Header
Adam Tech 15SH-B-05-TR-SMT-T/R	Friction Lock		Surface Mount Right Angle	Brass	Shrouded - 4 Wall	4.45 mm	0.175 in	UL94 V-0	Square	Solder	Tin	-25 °C	85 °C	All	Board to Cable/Wire	1	350 VAC	Natural	3 A	Male Pin	Header
