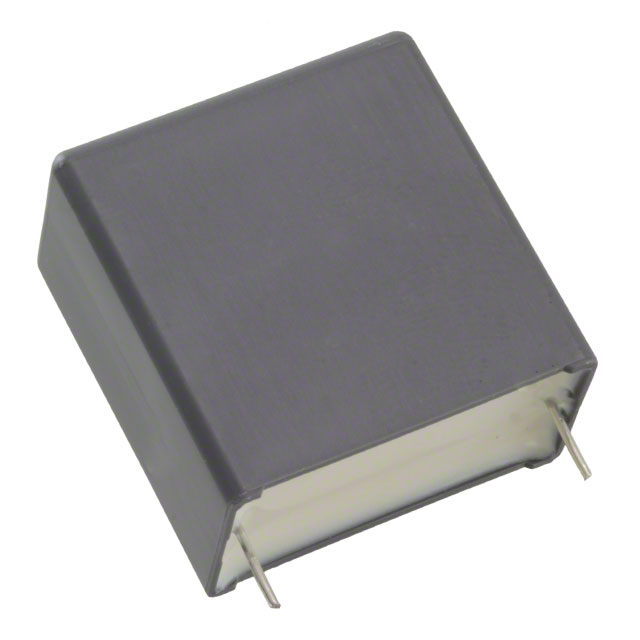

R46KR433000M2K - R46KR433000M2K

R46KR433000M2K

Active
KEMET

CAP FILM 3.3UF 10% 560VDC RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsR46KR433000M2KDatasheet
R46KR433000M2K - R46KR433000M2K

R46KR433000M2K

Active
KEMET

CAP FILM 3.3UF 10% 560VDC RADIAL

Deep-Dive with AI

DocumentsR46KR433000M2KDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationR46KR433000M2K
ApplicationsEMI, RFI Suppression
Capacitance3.3 µF
Dielectric MaterialMetallized, Polypropylene (PP)
Lead Spacing27.5 mm
Lead Spacing1.083 in
Mounting TypeThrough Hole
Operating Temperature [Max]110 °C
Operating Temperature [Min]-40 °C
Package / CaseRadial
RatingsX2
Size / Dimension [x]32 mm
Size / Dimension [x]1.26 in
Size / Dimension [y]0.709 "
Size / Dimension [y]18 mm
TerminationPC Pins
Tolerance10 %
Voltage Rating - AC275 V
Voltage Rating - DC560 V

R46KR Series

PartSize / Dimension [x]Size / Dimension [y]Size / Dimension [x]Size / Dimension [y]Package / CaseHeight - Seated (Max) [Max]Height - Seated (Max) [Max]Dielectric MaterialLead SpacingLead SpacingMounting TypeRatingsOperating Temperature [Min]Operating Temperature [Max]ToleranceCapacitanceApplicationsVoltage Rating - DCVoltage Rating - ACTerminationHeight - Seated (Max) [Max] [z]Height - Seated (Max) [Max] [z]Size / Dimension [y]
KEMET
R46KR34700001M
1.26 in
0.354 in
32 mm
9 mm
Radial
0.673 in
17.1 mm
Metallized
Polypropylene (PP)
27.5 mm
1.083 in
Through Hole
X2
-40 °C
110 °C
20 %
0.47 µF
EMI
RFI Suppression
560 V
275 V
PC Pins
KEMET
R46KR415000P0M
1.26 in
0.433 in
32 mm
11 mm
Radial
Metallized
Polypropylene (PP)
27.5 mm
1.083 in
Through Hole
X2
-40 °C
110 °C
20 %
1.5 µF
EMI
RFI Suppression
560 V
275 V
PC Pins
KEMET
R46KR447000P1M
1.26 in
0.551 in
32 mm
14 mm
Radial
1.106 "
28.1 mm
Metallized
Polypropylene (PP)
27.5 mm
1.083 in
Through Hole
X2
-40 °C
110 °C
20 %
4.7 µF
EMI
RFI Suppression
560 V
275 V
PC Pins
KEMET
R46KR433050M2K
1.26 in
0.709 "
32 mm
18 mm
Radial
Metallized
Polypropylene (PP)
27.5 mm
1.083 in
Through Hole
X2
-40 °C
110 °C
10 %
3.3 µF
EMI
RFI Suppression
560 V
275 V
PC Pins
KEMET
R46KR422045M2M
1.26 in
0.512 in
32 mm
Radial
Metallized
Polypropylene (PP)
27.5 mm
1.083 in
Through Hole
X2
-40 °C
110 °C
20 %
2.2 µF
EMI
RFI Suppression
560 V
275 V
PC Pins
25.1 mm
0.988 "
13 mm
KEMET
R46KR433000M2K
1.26 in
0.709 "
32 mm
18 mm
Radial
Metallized
Polypropylene (PP)
27.5 mm
1.083 in
Through Hole
X2
-40 °C
110 °C
10 %
3.3 µF
EMI
RFI Suppression
560 V
275 V
PC Pins
KEMET
R46KR34704001K
1.26 in
0.354 in
32 mm
9 mm
Radial
0.673 in
17.1 mm
Metallized
Polypropylene (PP)
27.5 mm
1.083 in
Through Hole
X2
-40 °C
110 °C
10 %
0.47 µF
EMI
RFI Suppression
560 V
275 V
PC Pins
KEMET
R46KR4100JHM1K
1.26 in
0.433 in
32 mm
11 mm
Radial
Metallized
Polypropylene (PP)
27.5 mm
1.083 in
Through Hole
X2
-40 °C
110 °C
10 %
1 µF
EMI
RFI Suppression
560 V
275 V
PC Pins
KEMET
R46KR422050M2K
1.26 in
0.512 in
32 mm
Radial
Metallized
Polypropylene (PP)
27.5 mm
1.083 in
Through Hole
X2
-40 °C
110 °C
10 %
2.2 µF
EMI
RFI Suppression
560 V
275 V
PC Pins
25.1 mm
0.988 "
13 mm
KEMET
R46KR447050M1K
1.26 in
0.866 in
32 mm
22 mm
Radial
1.461 in
37.1 mm
Metallized
Polypropylene (PP)
27.5 mm
1.083 in
Through Hole
X2
-40 °C
110 °C
10 %
4.7 µF
EMI
RFI Suppression
560 V
275 V
PC Pins

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 2.20
10$ 1.69
50$ 1.53
256$ 1.25
NewarkEach 500$ 1.76
1000$ 1.53
2500$ 1.37

Description

General part information

R46KR Series

3.3 µF Film Capacitor 275V 560V Polypropylene (PP), Metallized Radial
