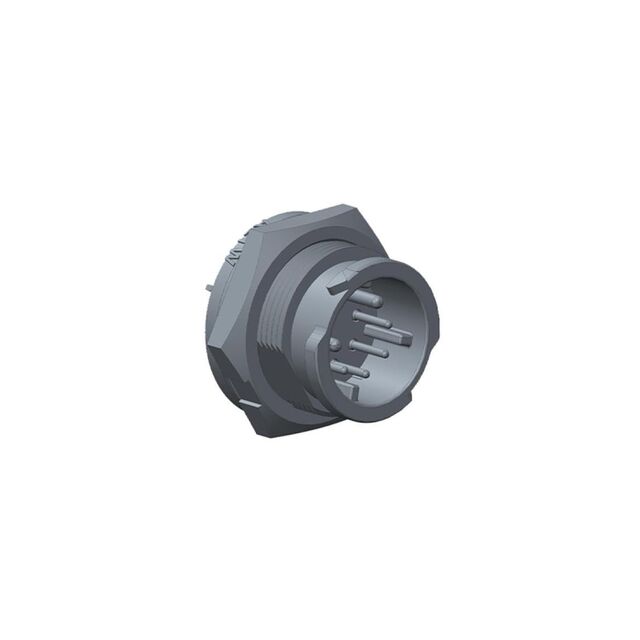

CBD-06PMMS-QC8001

Active

Amphenol LTW

X-LOK, MIDDLE SIZE, PLASTIC, 10A+5A, 06 PINS, MALE CONNECTOR, MALE CONTACT, CIRCULAR, PUSH LOCK, SOLDER, RECEPTACLE, IP68 ROHS C

Search across all available documentation for this part.

Active

Amphenol LTW

X-LOK, MIDDLE SIZE, PLASTIC, 10A+5A, 06 PINS, MALE CONNECTOR, MALE CONTACT, CIRCULAR, PUSH LOCK, SOLDER, RECEPTACLE, IP68 ROHS C

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating	Shielding	Primary Material	Current Rating (Amps)	Insert Material	Mounting Feature	Connector Type	Shell Size - Insert	Contact Material	Contact Finish - Mating	Color	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Orientation	Number of Positions	Fastening Type
Amphenol LTW CBD-06PMMS-QC8001	300 VDC	Unshielded	Plastic	10A 5A	Thermoplastic	Bulkhead - Front Side Nut	Male Pins Receptacle	C	Copper Alloy	Gold	Black	-40 °C	105 ░C	IP68 - Dust Tight Waterproof	Keyed	6	Bayonet Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle, Male Pins Solder Cup
