19400060418

Active

HARTING Technology Group

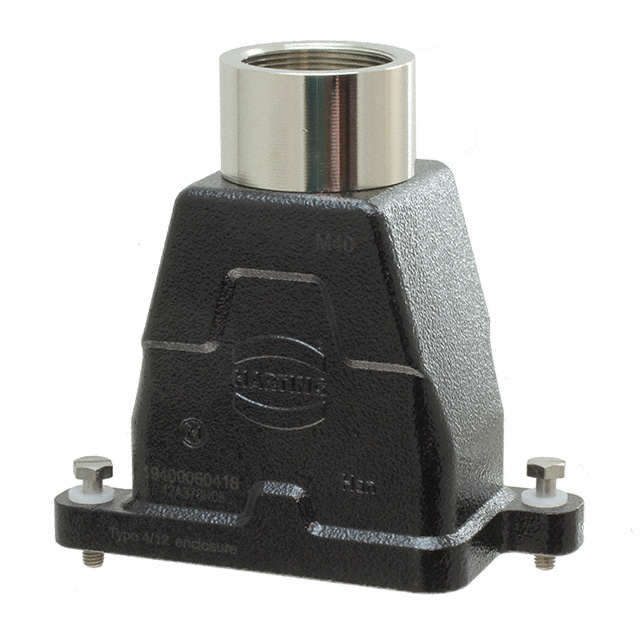

ENCLOSURE FOR CONNECTORS: HDC; SIZE 6B; FOR CABLE; HAN® HPR; M40

Search across all available documentation for this part.

Active

HARTING Technology Group

ENCLOSURE FOR CONNECTORS: HDC; SIZE 6B; FOR CABLE; HAN® HPR; M40

Technical Specifications

Parameters and characteristics for this part

Part	Thread Size	Housing Color	Style	Housing Material	Lock Location	Connector Type	Size	Operating Temperature [Max]	Operating Temperature [Min]	Housing Finish	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Features
HARTING Technology Group 19400060501	M25	Black	Side Entry	Aluminum Die Cast	Screw Locks on Hood	Hood	6B	125 °C	-40 °C	Powder Coated	100.5 mm	2.283 "	3.957 in	5.197 in	132 mm	58 mm
HARTING Technology Group 19400060510	M20	Black	Side Entry	Aluminum Die Cast	Screw Locks on Hood	Hood	6B	125 °C	-40 °C	Powder Coated	100.5 mm	2.283 "	3.957 in	5.197 in	132 mm	58 mm
HARTING Technology Group 19400060418		Black	Top Entry	Aluminum Die Cast	Screw Locks on Hood	Hood	6B	125 °C	-40 °C	Powder Coated		2.283 "	3.937 "	5.197 in	132 mm		58 mm	100 mm
HARTING Technology Group 19400060512	M32	Black	Side Entry	Aluminum Die Cast	Screw Locks on Hood	Hood	6B	125 °C	-40 °C	Powder Coated	100.5 mm	2.283 "	3.957 in	5.197 in	132 mm	58 mm			Corrosion Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Top Entry M40 6B IP65/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
