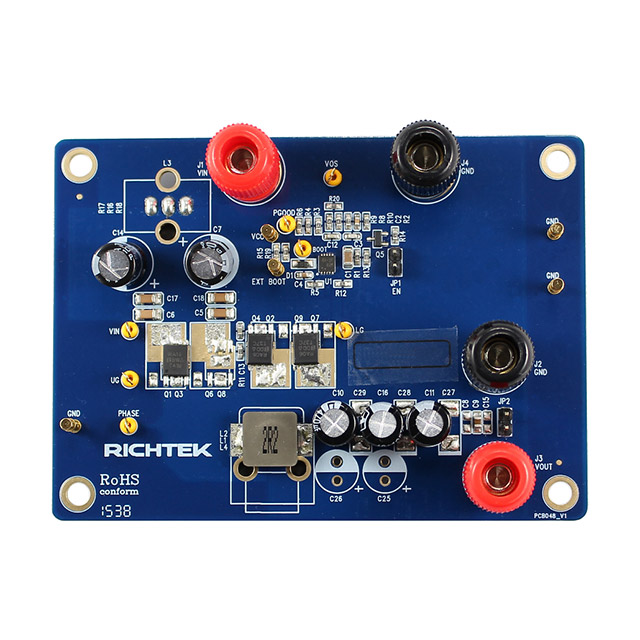

EVAL MODULE FOR RT8130BGQW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsRT8130B
EVB_RT8130BGQW
ActiveRichtek USA Inc.
EVAL MODULE FOR RT8130BGQW
Deep-Dive with AI
DocumentsRT8130B
Technical Specifications
Parameters and characteristics for this part
| Specification | EVB_RT8130BGQW |
|---|---|
| Board Type | Fully Populated |
| Current - Output | 7 A |
| Frequency - Switching | 300 kHz |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | Non-Isolated |
| Outputs and Type | 1 |
| Regulator Topology | Buck |
| Supplied Contents | Board(s) |
| Utilized IC / Part | RT8130B |
| Voltage - Input | 19 V |
| Voltage - Output | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 44.90 | |
Description
General part information
RT8130 Series
RT8130B - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
