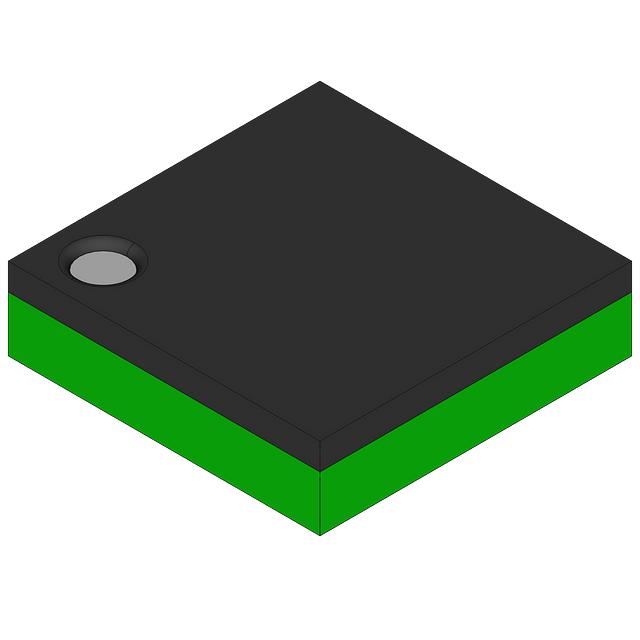

LP8550TLX-A/NOPB
ActiveNational Semiconductor
IC LED DRVR RGLTR PWM 25DSBGA
Deep-Dive with AI
Search across all available documentation for this part.
LP8550TLX-A/NOPB
ActiveNational Semiconductor
IC LED DRVR RGLTR PWM 25DSBGA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LP8550TLX-A/NOPB |
|---|---|
| Applications | Lighting, Backlight |
| Current - Output / Channel | 450 mA |
| Dimming | PWM |
| Frequency | 1.25 MHz |
| Internal Switch(s) | True |
| Mounting Type | Surface Mount |
| Number of Outputs | 6 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 °C |
| Package / Case | DSBGA, 25-WFBGA |
| Supplier Device Package | 25-DSBGA (2.46x2.46) |
| Topology | Step-Up (Boost) |
| Type | DC DC Regulator |
| Voltage - Output | 40 V |
| Voltage - Supply (Max) [Max] | 22 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 275 | $ 1.09 | |
| Tape & Reel (TR) | 3000 | $ 1.03 | ||
| 6000 | $ 1.00 | |||
Description
General part information
LP8550 Series
LED Driver IC 6 Output DC DC Regulator Step-Up (Boost) PWM Dimming 450mA (Switch) 25-DSBGA (2.46x2.46)
Documents
Technical documentation and resources
No documents available
