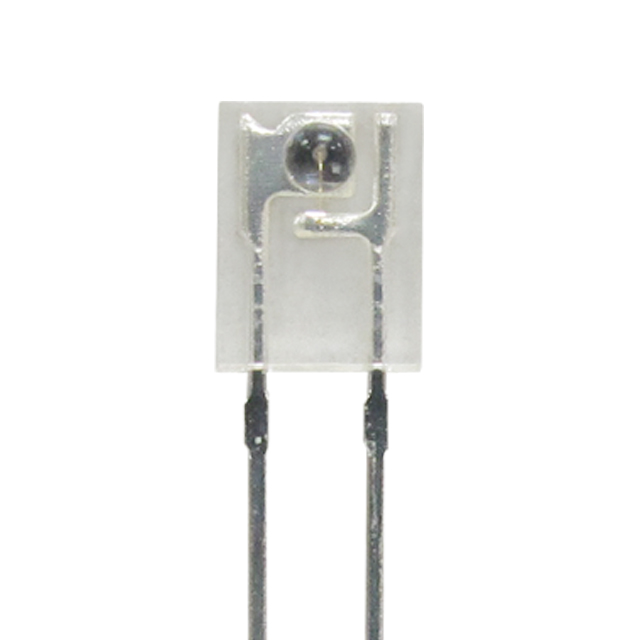

AM4457P3C

Kingbright

SENSOR PHOTO 940NM VERTICAL 2SIP

Search across all available documentation for this part.

Kingbright

SENSOR PHOTO 940NM VERTICAL 2SIP

Technical Specifications

Parameters and characteristics for this part

Specification	AM4457P3C

Current - Collector (Ic) (Max) [Max]	2 mA
Current - Dark (Id) (Max) [Max]	100 nA
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Vertical
Package / Case	2-SIP
Power - Max [Max]	100 mW
Viewing Angle	70 °
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V
Wavelength	940 nm

Part	Voltage - Collector Emitter Breakdown (Max) [Max]	Orientation	Package / Case	Current - Collector (Ic) (Max) [Max]	Wavelength	Mounting Type	Power - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Dark (Id) (Max) [Max]	Viewing Angle
Kingbright AM4457P3C	30 V	Vertical	2-SIP	2 mA	940 nm	Through Hole	100 mW	85 °C	-40 °C	100 nA	70 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	20000	$ 0.12

General part information

Phototransistors 940nm Vertical 2-SIP
