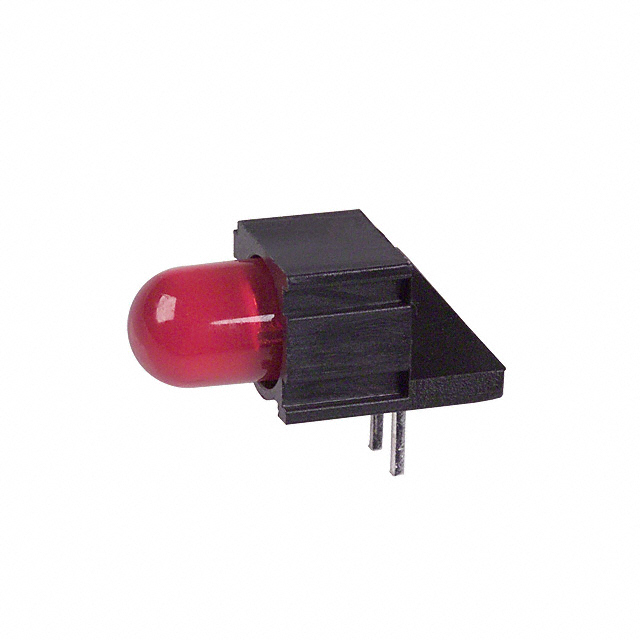

SSF-LXH100MLID

Active

Lumex Opto/Components Inc.

LED CBI 5MM RED RA PCMNT

Deep-Dive with AI

Search across all available documentation for this part.

SSF-LXH100MLID

Active

Lumex Opto/Components Inc.

LED CBI 5MM RED RA PCMNT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSF-LXH100MLID

Color	Red
Configuration	Single
Lens Size	T-1 3/4
Lens Size	5 mm
Lens Style	Round with Domed Top
Lens Type	Tinted, Diffused
Millicandela Rating	30 mcd
Mounting Type	Through Hole, Right Angle
Viewing Angle	60 °
Voltage Rating	2 V
Wavelength - Peak	635 nm

SSF-LXH100 Series

Part	Lens Type	Lens Style	Millicandela Rating	Configuration	Viewing Angle	Lens Size	Lens Size	Mounting Type	Color	Wavelength - Peak	Voltage Rating	Wavelength - Peak [custom]
Lumex Opto/Components Inc. SSF-LXH100USBD-01	Diffused Tinted	Round with Domed Top	40 mcd	Single	60 °	T-1 3/4	5 mm	Through Hole Right Angle	Blue
Lumex Opto/Components Inc. SSF-LXH100GD-01	Diffused Tinted	Round with Domed Top	30 mcd	Single	60 °	T-1 3/4	5 mm	Through Hole Right Angle	Green	565 nm
Lumex Opto/Components Inc. SSF-LXH100LYD	Diffused Tinted	Round with Domed Top	30 mcd	Single	60 °	T-1 3/4	5 mm	Through Hole Right Angle	Yellow	585 nm	2.1 V
Lumex Opto/Components Inc. SSF-LXH100SRD	Diffused Tinted	Round with Domed Top	60 mcd	Single	60 °	T-1 3/4	5 mm	Through Hole Right Angle	Red	660 nm	1.7 V
Lumex Opto/Components Inc. SSF-LXH100LID-01	Diffused Tinted	Round with Domed Top		Single		T-1 3/4	5 mm	Through Hole Right Angle	Red		2 V
Lumex Opto/Components Inc. SSF-LXH100YD	Diffused Tinted	Round with Domed Top	30 mcd	Single	60 °	T-1 3/4	5 mm	Through Hole Right Angle	Yellow	585 nm	2.1 V
Lumex Opto/Components Inc. SSF-LXH100HD	Diffused	Round with Domed Top	6 mcd	Single	60 °			Through Hole Right Angle	Red	695 nm
Lumex Opto/Components Inc. SSF-LXH100MLGD	Diffused Tinted	Round with Domed Top	30 mcd	Single	60 °	T-1 3/4	5 mm	Through Hole Right Angle	Green	565 nm
Lumex Opto/Components Inc. SSF-LXH100MHGW	Diffused White	Round with Domed Top		Single	60 °	T-1 3/4	5 mm	Through Hole Right Angle	Green Red		2 V 2.2 V	565 nm 700 nm
Lumex Opto/Components Inc. SSF-LXH100MLID	Diffused Tinted	Round with Domed Top	30 mcd	Single	60 °	T-1 3/4	5 mm	Through Hole Right Angle	Red	635 nm	2 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.29

Description

General part information

SSF-LXH100 Series

LED Circuit Board Indicator LED Circuit Board Indicator Single Red Diffused, Tinted 2V 20mA Round with Domed Top 5mm, T-1 3/4 Through Hole, Right Angle

Documents

Technical documentation and resources

No documents available
