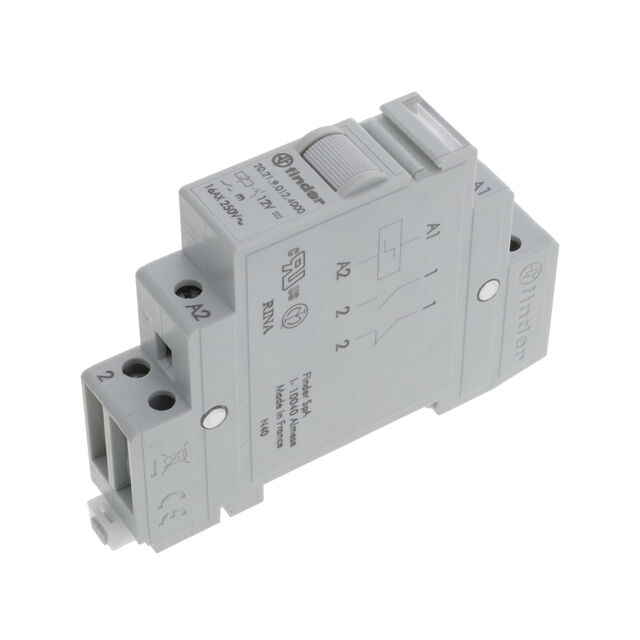

20.21.9.012.4000
ActiveFinder Relays, Inc.
RELAY IMPULSE SPST 16A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 20.21.9.012.4000 |
|---|---|
| Approval Agency | RINA, EAC, CE, UKCA, cULus |
| Coil Current | 440 mA |
| Coil Resistance | 27 Ohms |
| Coil Type | Latching, Single Coil |
| Coil Voltage | 12 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 16 A |
| Load - Max Switching | 6400 VA |
| Mounting Type | DIN Rail |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | Impulse |
| Switching Voltage [Max] | 400 VAC |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 31.29 | |
| 10 | $ 27.87 | |||
| 25 | $ 26.61 | |||
| 50 | $ 25.70 | |||
| 100 | $ 24.81 | |||
| 250 | $ 23.69 | |||
Description
General part information
20.21.9 Series
Impulse Relay SPST-NO (1 Form A) 12VDC Coil DIN Rail
