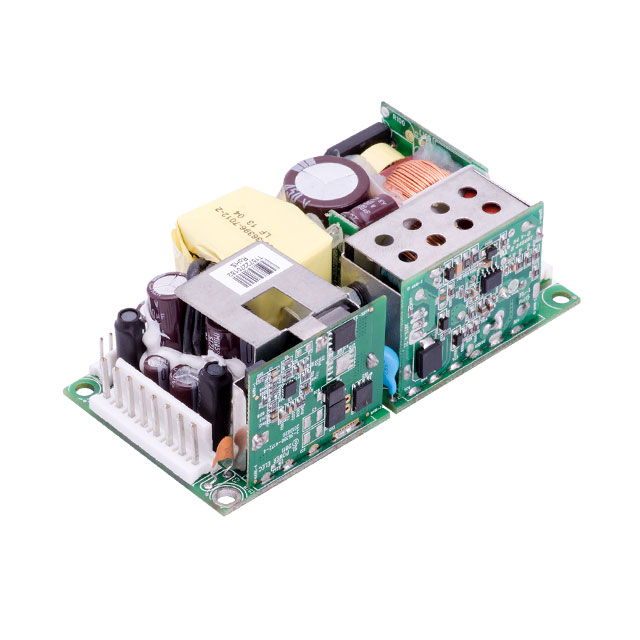

CINT3110A1908K01

Obsolete

SL POWER / Advanced Energy

AC/DC POWER SUPPLY TRIPLE-OUT 5V/24V/-24V 8A/3A/1A 110W 15-PIN

Search across all available documentation for this part.

Obsolete

SL POWER / Advanced Energy

AC/DC POWER SUPPLY TRIPLE-OUT 5V/24V/-24V 8A/3A/1A 110W 15-PIN

Technical Specifications

Parameters and characteristics for this part

Specification	CINT3110A1908K01

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	12 A
Current - Output 2	4 A
Efficiency	87 %
Features	Remote Sense, Universal Input, Adjustable Output, DC Input Capable
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	3
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	80 W, 110 W
Size / Dimension [x]	101.6 mm
Size / Dimension [x]	4 in
Size / Dimension [y]	2 in
Size / Dimension [y]	50.8 mm
Size / Dimension [z]	1.3 "
Size / Dimension [z]	33 mm
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	5 V
Voltage - Output 2	24 V
Voltage - Output 3	-24 V

Part	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Minimum Load Required	Features	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Type	Efficiency	Voltage - Output 3	Voltage - Output 2	Current - Output 1	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output 2	Approval Agency	Mounting Type	Power (Watts)	Voltage - Output 1
SL POWER / Advanced Energy CINT3110A1908K01	4000 V	101.6 mm	1.3 "	2 in	4 in	50.8 mm	33 mm		Adjustable Output DC Input Capable Remote Sense Universal Input	90 VAC	264 VAC	ITE (Commercial)	Open Frame	87 %	-24 V	24 V	12 A	3	-10 °C	70 °C	4 A	CE	Chassis Mount	80 W 110 W	5 V
SL POWER / Advanced Energy CINT3110A1708K01	4000 V	101.6 mm	1.3 "	2 in	4 in	50.8 mm	33 mm		Adjustable Output DC Input Capable Remote Sense Universal Input	90 VAC	264 VAC	ITE (Commercial)	Open Frame	87 %	-15 V	15 V	14 A	3	-10 °C	70 °C	4.5 A	CE	Chassis Mount	80 W 110 W	5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 104.95

General part information

Open Frame AC DC Converters 3 Output 5V 24V -24V 90 ~ 264 VAC Input
