SC4806MLTRT

Obsolete

Semtech Corporation

IC REG CTRLR BUCK 12MLPQ

Search across all available documentation for this part.

Obsolete

Semtech Corporation

IC REG CTRLR BUCK 12MLPQ

Technical Specifications

Parameters and characteristics for this part

Specification	SC4806MLTRT

Clock Sync	True
Control Features	Frequency Control, Soft Start, Current Limit, Ramp
Duty Cycle (Max)	49 %
Frequency - Switching [Max]	1 MHz
Frequency - Switching [Min]	50 kHz
Function	Step-Down
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive, Isolation Capable
Output Phases	1
Output Type	Transistor Driver
Package / Case	12-VQFN Exposed Pad

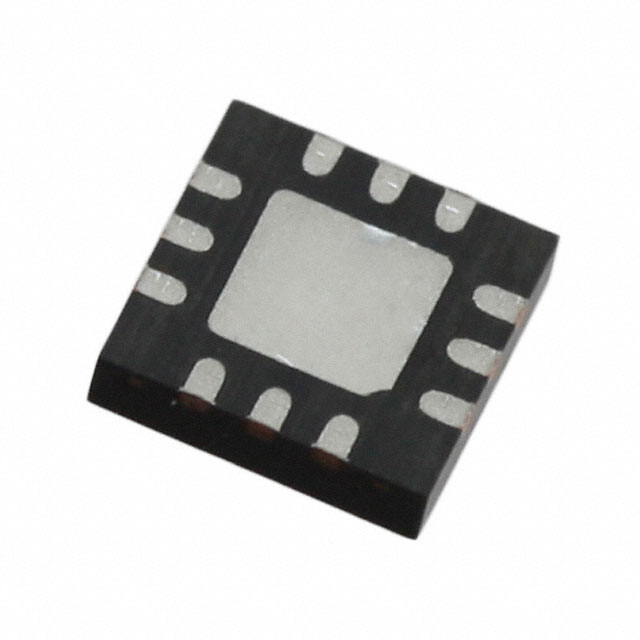

Supplier Device Package	12-MLPQ (4x4)
Synchronous Rectifier	False
Topology	Buck
Voltage - Supply (Vcc/Vdd) [Max]	8.6 V
Voltage - Supply (Vcc/Vdd) [Min]	7.4 V

Part	Package / Case	Clock Sync	Control Features	Topology	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Supplier Device Package	Output Phases	Synchronous Rectifier	Mounting Type	Number of Outputs	Duty Cycle (Max)	Frequency - Switching [Min]	Frequency - Switching [Max]	Function	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Output Configuration
Semtech Corporation SC4806MLTRT	12-VQFN Exposed Pad		Current Limit Frequency Control Ramp Soft Start	Buck	7.4 V	8.6 V	12-MLPQ (4x4)	1		Surface Mount	1	49 %	50 kHz	1 MHz	Step-Down	105 °C	-40 °C	Transistor Driver	Isolation Capable Positive

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Buck Regulator Positive, Isolation Capable Output Step-Down DC-DC Controller IC 12-MLPQ (4x4)

Technical documentation and resources

No documents available
