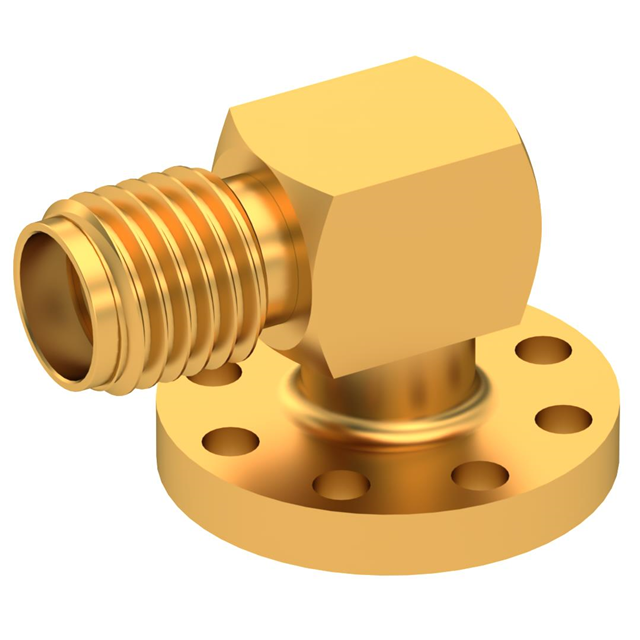

9035-1513-003

Active

Radiall USA, Inc.

SMA / RIGHT ANGLE JACK RECEPTACL

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA / RIGHT ANGLE JACK RECEPTACL

Technical Specifications

Parameters and characteristics for this part

Specification	9035-1513-003

Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Mounting Type	Surface Mount, Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Mounting Type	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports	Connector Style	Mating Cycles	Housing Color	Frequency - Max [Max]	Shield Termination	Mounting Feature	Body Finish	Dielectric Material	Impedance	Center Contact Plating	Connector Type	Contact Termination	Body Material
Radiall USA, Inc. 9035-1513-001	Surface Mount Right Angle	Beryllium Copper	-65 ░C	165 °C	1	SMA	500	Gold	18 GHz	Solder	Flange	Gold	Polytetrafluoroethylene (PTFE)	50 Ohms	Gold	Female Socket Jack	Solder	Stainless Steel
Radiall USA, Inc. 9035-1513-003	Surface Mount Right Angle	Beryllium Copper	-65 ░C	165 °C	1	SMA	500	Gold	18 GHz	Solder	Flange	Gold	Polytetrafluoroethylene (PTFE)	50 Ohms	Gold	Female Socket Jack	Solder	Stainless Steel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 55.25

General part information

SMA Connector Jack, Female Socket 50 Ohms Surface Mount, Right Angle Solder
