Q-0401N0005060i

Active

Amphenol Custom Cable

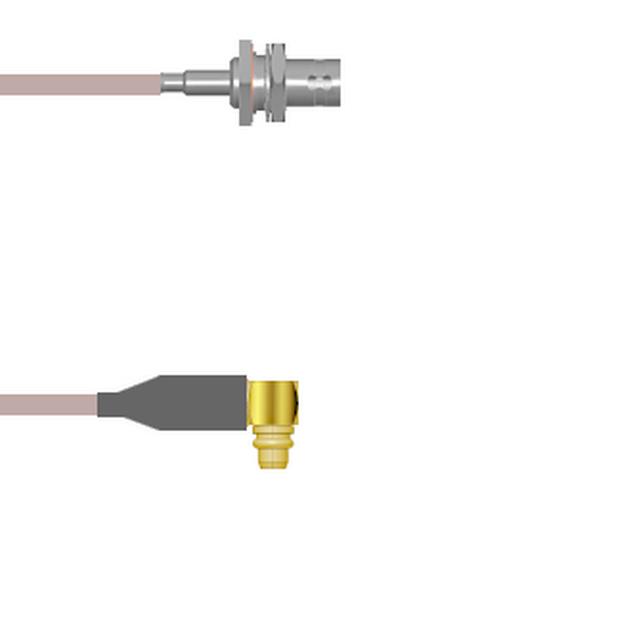

CBL ASSY BNC-MMCX JACK-PLUG 5'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0401N0005060i

Active

Amphenol Custom Cable

CBL ASSY BNC-MMCX JACK-PLUG 5'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0401N0005060i

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	MMCX Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	5 ft
Length	1.5 m
Length	5 '
Overall Impedance	50 Ohms
Style	BNC to MMCX

Q-0401N0 Series

Part	2nd Contact Gender	1st Contact Gender	Features	Length	Length	1st Connector Mounting Feature	Frequency - Max [Max]	1st Connector	1st Connector Mounting Type	Cable Type	Overall Impedance	Style	Color	2nd Connector	2nd Connector Mounting Type	Length	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-0401N0003012i	Male	Female	Shielded	12 "	304.8 mm	Bulkhead - Front Side Nut	4 GHz	BNC Jack	Panel Mount	RG-174	50 Ohms	BNC to MMCX	Black	MMCX Plug Right Angle	Free Hanging (In-Line)
Amphenol Custom Cable Q-0401N00032.5M	Male	Female	Shielded	98.4 in	2.5 m	Bulkhead - Front Side Nut	4 GHz	BNC Jack	Panel Mount	RG-174	50 Ohms	BNC to MMCX	Black	MMCX Plug Right Angle	Free Hanging (In-Line)	8.2 '
Amphenol Custom Cable Q-0401N0005018i	Male	Female	Shielded			Bulkhead - Front Side Nut	4 GHz	BNC Jack	Panel Mount	RG-316	50 Ohms	BNC to MMCX	Copper	MMCX Plug Right Angle	Free Hanging (In-Line)		457.2 mm	457.2 mm
Amphenol Custom Cable Q-0401N0005003M	Male	Female	Shielded	118.1 in	3 m	Bulkhead - Front Side Nut	4 GHz	BNC Jack	Panel Mount	RG-316	50 Ohms	BNC to MMCX	Copper	MMCX Plug Right Angle	Free Hanging (In-Line)	9.8 '
Amphenol Custom Cable Q-0401N0005060i	Male	Female	Shielded	5 '	1.5 m	Bulkhead - Front Side Nut	4 GHz	BNC Jack	Panel Mount	RG-316	50 Ohms	BNC to MMCX	Copper	MMCX Plug Right Angle	Free Hanging (In-Line)	5 ft
Amphenol Custom Cable Q-0401N0003.25M	Male	Female	Shielded			Bulkhead - Front Side Nut	4 GHz	BNC Jack	Panel Mount	RG-174	50 Ohms	BNC to MMCX	Black	MMCX Plug Right Angle	Free Hanging (In-Line)			250 mm	9.843 "
Amphenol Custom Cable Q-0401N00050.5M	Male	Female	Shielded	19.69 "	50 cm	Bulkhead - Front Side Nut	4 GHz	BNC Jack	Panel Mount	RG-316	50 Ohms	BNC to MMCX	Copper	MMCX Plug Right Angle	Free Hanging (In-Line)
Amphenol Custom Cable Q-0401N0003048i	Male	Female	Shielded	48 in	1200 mm	Bulkhead - Front Side Nut	4 GHz	BNC Jack	Panel Mount	RG-174	50 Ohms	BNC to MMCX	Black	MMCX Plug Right Angle	Free Hanging (In-Line)	4 ft
Amphenol Custom Cable Q-0401N0003009i	Male	Female	Shielded	9 "	228.6 mm	Bulkhead - Front Side Nut	4 GHz	BNC Jack	Panel Mount	RG-174	50 Ohms	BNC to MMCX	Black	MMCX Plug Right Angle	Free Hanging (In-Line)
Amphenol Custom Cable Q-0401N0003003M	Male	Female	Shielded	118.1 in	3 m	Bulkhead - Front Side Nut	4 GHz	BNC Jack	Panel Mount	RG-174	50 Ohms	BNC to MMCX	Black	MMCX Plug Right Angle	Free Hanging (In-Line)	9.8 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 96.31
		25	$ 94.42
		50	$ 92.52
		100	$ 90.62
		250	$ 88.72

Description

General part information

Q-0401N0 Series

Cable Assembly Coaxial BNC to MMCX RG-316 60.0" (1.5m) 5.0'

Documents

Technical documentation and resources

No documents available
