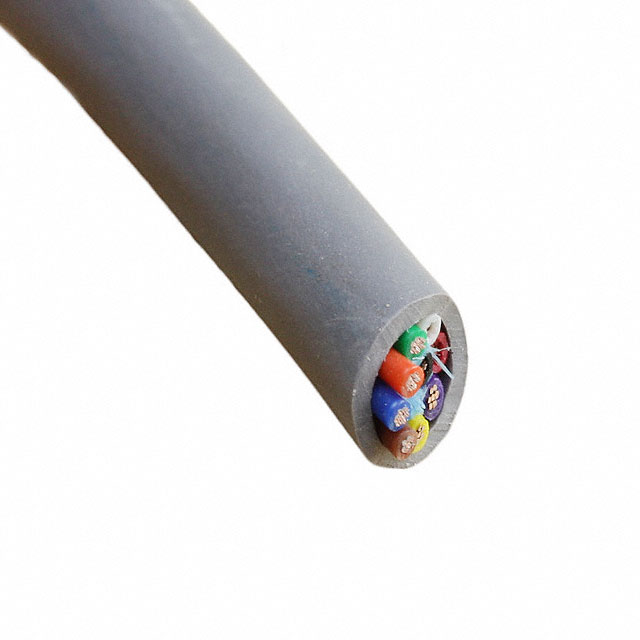

1219C SL005

Active

ALPHA WIRE

CABLE 9CON 24AWG SLATE SHLD 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 9CON 24AWG SLATE SHLD 100'

Technical Specifications

Parameters and characteristics for this part

Part	Voltage	Cable Type	Usage	Number of Conductors	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Shield Material	Features	Conductor Insulation	Shield Type	Jacket Color	Conductor Material	Length	Length	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Shield Coverage	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter	Length [x]	Length [x]
ALPHA WIRE 1219C SL021	300 V	Multi-Conductor	Communication Control	9	Poly-Vinyl Chloride (PVC)	32 AWG	7	Aluminum	Drain Wire	Poly-Vinyl Chloride (PVC)	Foil	Slate	Copper Tinned	1000 ft	304.8 m	24 AWG	-20 C	80 C	100 %	5.79 mm	0.228 in
ALPHA WIRE 1219C SL005	300 V	Multi-Conductor	Communication Control	9	Poly-Vinyl Chloride (PVC)	32 AWG	7	Aluminum	Drain Wire	Poly-Vinyl Chloride (PVC)	Foil	Slate	Copper Tinned			24 AWG	-20 C	80 C	100 %	5.79 mm	0.228 in	30.5 m	100 ft
ALPHA WIRE 1219C SL002	300 V	Multi-Conductor	Communication Control	9	Poly-Vinyl Chloride (PVC)	32 AWG	7	Aluminum	Drain Wire	Poly-Vinyl Chloride (PVC)	Foil	Slate	Copper Tinned			24 AWG	-20 C	80 C	100 %	5.79 mm	0.228 in	152.4 m	500 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Conductor Multi-Conductor Cable Slate 24 AWG Foil 100.0' (30.5m)
