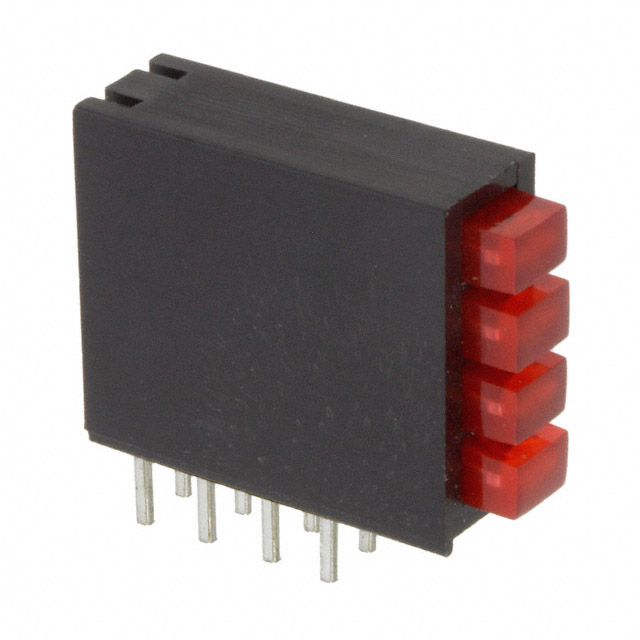

SSF-LXH534SID
ActiveLumex Opto/Components Inc.
LED CBI 3X2MM QUAD RED RA
Deep-Dive with AI
Search across all available documentation for this part.
SSF-LXH534SID
ActiveLumex Opto/Components Inc.
LED CBI 3X2MM QUAD RED RA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SSF-LXH534SID |
|---|---|
| Color | Red (x 4) |
| Configuration | 4 High |
| Current | 30 mA |
| Lens Size [x] | 3 mm |
| Lens Size [y] | 2 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Type | Tinted, Diffused |
| Millicandela Rating | 120 mcd |
| Mounting Type | Through Hole, Right Angle |
| Viewing Angle | 100 ° |
| Voltage Rating | 2 V |
| Wavelength - Peak | 636 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.46 | |
| 10 | $ 3.15 | |||
| 100 | $ 2.58 | |||
| 650 | $ 2.18 | |||
| 1300 | $ 2.00 | |||
| 2600 | $ 1.91 | |||
| 5200 | $ 1.88 | |||
Description
General part information
SSF-LXH534 Series
LED Circuit Board Indicator LED Circuit Board Indicator 4 High Red (x 4) Diffused, Tinted 2.0V 30mA Rectangle with Flat Top 3.00mm x 2.00mm Through Hole, Right Angle
