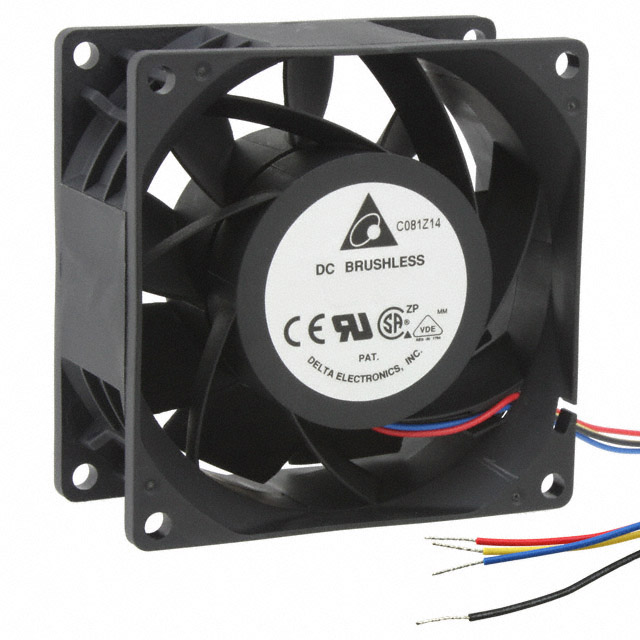

PFC0812DE-SP07

Active

Delta Electronics

DC FAN AXIAL BALL BEARING 12V 7V TO 13.2V 86.65CFM 54.4DB 80 X 80 X 38MM

Search across all available documentation for this part.

Active

Delta Electronics

DC FAN AXIAL BALL BEARING 12V 7V TO 13.2V 86.65CFM 54.4DB 80 X 80 X 38MM

Technical Specifications

Parameters and characteristics for this part

Specification	PFC0812DE-SP07

Air Flow	86.5 CFM
Air Flow	2.42 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	800 mA
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	50000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	54.4 dB(A)
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	9.6 W
RPM	6000 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Static Pressure	0.895 in H2O
Static Pressure	222.9 Pa
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	7 V
Weight	205.02 g
Weight	0.452 lb
Width [y]	38 mm

Part	Termination	Bearing Type	Size / Dimension [y]	Size / Dimension [x]	Air Flow	Air Flow	Weight	Weight	Voltage - Rated	Material - Blade	Fan Type	RPM	Width [y]	Noise	Features	Approval Agency	Power (Watts)	Material - Frame	Voltage Range [Max]	Voltage Range [Min]	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Current Rating (Amps)	Static Pressure	Static Pressure
Delta Electronics PFC0812DE-SP07	4 Wire Leads	Ball	80 mm	80 mm	86.5 CFM	2.42 m³/min	205.02 g	0.452 lb	12 VDC	Plastic	Tubeaxial	6000 RPM	38 mm	54.4 dB(A)	Locked Rotor Protection PWM Control Speed Sensor (Tach)	CE CSA UL VDE	9.6 W	Plastic	13.2 VDC	7 V	50000 Hrs	-10 °C	-10 °C	60 °C	60 °C	800 mA	0.895 in H2O	222.9 Pa

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Ball 86.5 CFM (2.42m³/min) 4 Wire Leads
