46683C

Active

Murata Power Solutions Inc.

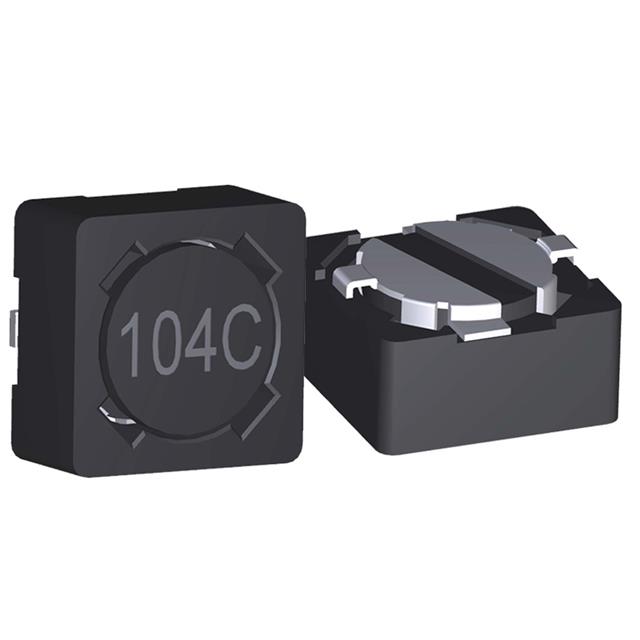

POWER INDUCTOR (SMD), 68 ΜH, 1.05 A, SHIELDED, 4600 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Power Magnetics Selection Guide +2

46683C

Active

Murata Power Solutions Inc.

POWER INDUCTOR (SMD), 68 ΜH, 1.05 A, SHIELDED, 4600 SERIES

Deep-Dive with AI

DocumentsDatasheet Power Magnetics Selection Guide +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	46683C

Current Rating (Amps)	1.05 A
DC Resistance (DCR) [Max]	360 mOhm
Height - Seated (Max) [Max] [z]	0.179 in
Height - Seated (Max) [Max] [z]	4.55 mm
Inductance	68 µH
Inductance Frequency - Test	10 kHz
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Nonstandard
Shielding	Shielded
Size / Dimension [x]	7.3 mm
Size / Dimension [x]	0.287 in
Size / Dimension [y]	7.3 mm
Size / Dimension [y]	0.287 in
Tolerance	20 %
Type	Wirewound

46 Series

Part	Inductance Frequency - Test	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Current Rating (Amps)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Inductance	Shielding	Type	DC Resistance (DCR) [Max]	Tolerance	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	DC Resistance (DCR)
Murata Power Solutions Inc. 46105C	10 kHz	7.3 mm	0.287 in	7.3 mm	0.287 in	270 mA	0.179 in	4.55 mm	1 mH	Shielded	Wirewound	4.9 Ohm	20 %	Surface Mount	125 °C	-40 °C	Nonstandard
Murata Power Solutions Inc. 46683C	10 kHz	7.3 mm	0.287 in	7.3 mm	0.287 in	1.05 A	0.179 in	4.55 mm	68 µH	Shielded	Wirewound	360 mOhm	20 %	Surface Mount	125 °C	-40 °C	Nonstandard
Murata Power Solutions Inc. 46223C	10 kHz	7.3 mm	0.287 in	7.3 mm	0.287 in	1.8 A	0.179 in	4.55 mm	22 µH	Shielded	Wirewound		20 %	Surface Mount	125 °C	-40 °C	Nonstandard	120 mOhm
Murata Power Solutions Inc. 46281C	10 kHz	7.3 mm	0.287 in	7.3 mm	0.287 in	8.7 A	0.179 in	4.55 mm	280 nH	Shielded	Wirewound	8 mOhm	30 %	Surface Mount	125 °C	-40 °C	Nonstandard
Murata Power Solutions Inc. 46102C	10 kHz	7.3 mm	0.287 in	7.3 mm	0.287 in	6.8 A	0.179 in	4.55 mm	1 µH	Shielded	Wirewound		30 %	Surface Mount	125 °C	-40 °C	Nonstandard	13 mOhm
Murata Power Solutions Inc. 46104C	10 kHz	7.3 mm	0.287 in	7.3 mm	0.287 in	0.86 A	0.179 in	4.55 mm	100 µH	Shielded	Wirewound	500 mOhm	20 %	Surface Mount	125 °C	-40 °C	Nonstandard
Murata Power Solutions Inc. 46472C	10 kHz	7.3 mm	0.287 in	7.3 mm	0.287 in	3.7 A	0.179 in	4.55 mm	4.7 ÁH	Shielded	Wirewound	37 mOhm	30 %	Surface Mount	125 °C	-40 °C	Nonstandard
Murata Power Solutions Inc. 46152C	10 kHz	7.3 mm	0.287 in	7.3 mm	0.287 in	6.3 A	0.179 in	4.55 mm	1.5 µH	Shielded	Wirewound	15 mOhm	30 %	Surface Mount	125 °C	-40 °C	Nonstandard
Murata Power Solutions Inc. 46332C	10 kHz	7.3 mm	0.287 in	7.3 mm	0.287 in	4.3 A	0.179 in	4.55 mm	3.3 µH	Shielded	Wirewound	29 mOhm	30 %	Surface Mount	125 °C	-40 °C	Nonstandard
Murata Power Solutions Inc. 46222C	10 kHz	7.3 mm	0.287 in	7.3 mm	0.287 in	5 A	0.179 in	4.55 mm	2.2 µH	Shielded	Wirewound	21 mOhm	30 %	Surface Mount	125 °C	-40 °C	Nonstandard
