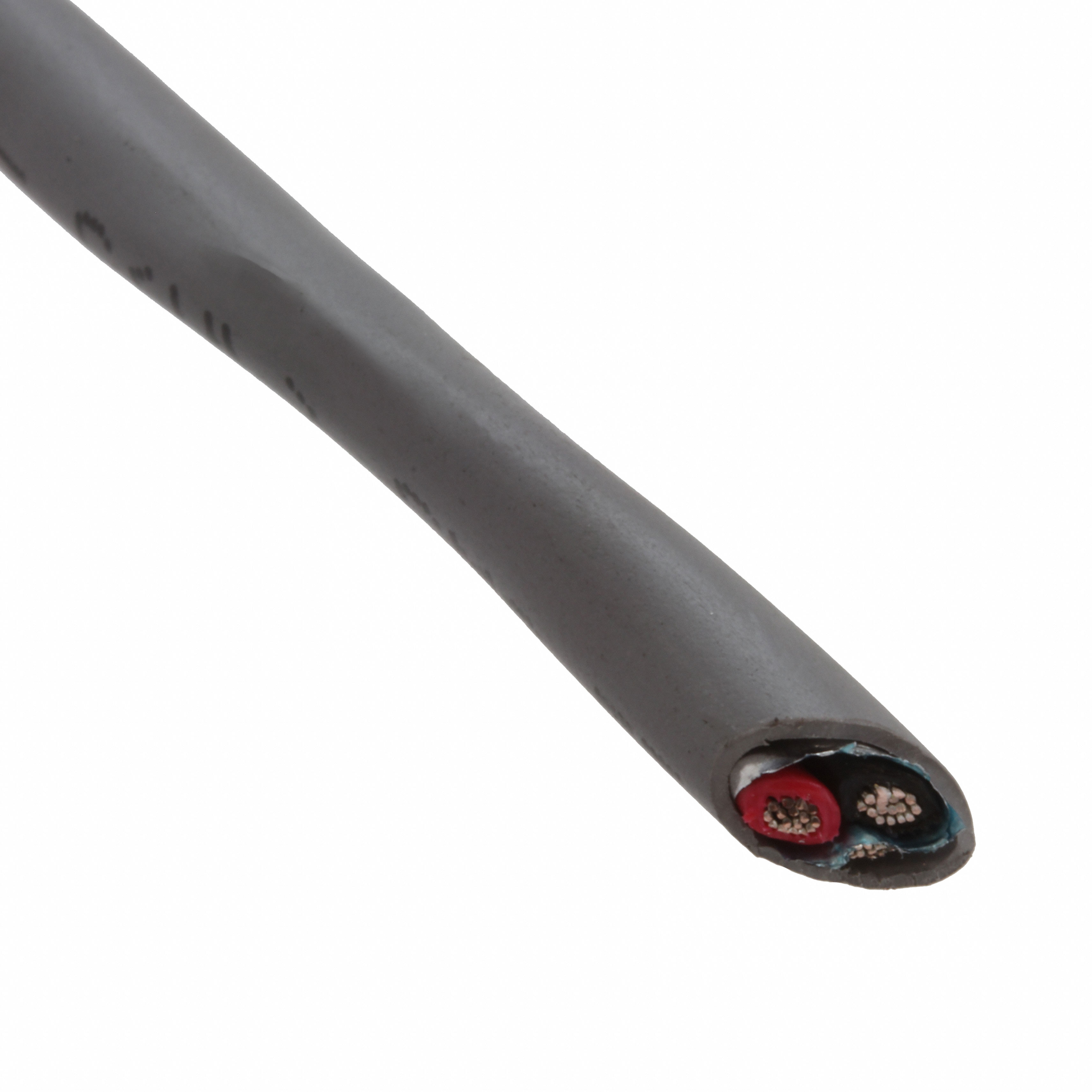

2412C SL022

Active

ALPHA WIRE

CABLE 2CON 20AWG SLATE SHLD 500'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 2CON 20AWG SLATE SHLD 500'

Technical Specifications

Parameters and characteristics for this part

Specification	2412C SL022

Cable Type	Multi-Conductor
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	4.67 mm
Jacket (Insulation) Diameter [diameter]	0.184 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in
Jacket (Insulation) Thickness	0.508 mm
Jacket Color	Slate
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Control, Communication
Voltage	300 V
Wire Gauge	20 AWG

Part	Shield Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Features	Jacket Color	Conductor Insulation	Length [x]	Length [x]	Shield Type	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Usage	Conductor Material	Number of Conductors	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Coverage	Wire Gauge
ALPHA WIRE 2412C SL022	Aluminum	4.67 mm	0.184 in	Drain Wire	Slate	Polyethylene (PE)	500 '	152.4 m	Foil	300 V	28	7	Multi-Conductor	Communication Control	Copper Tinned	2	Poly-Vinyl Chloride (PVC)	0.02 in	0.508 mm	100 %	20 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Conductor Multi-Conductor Cable Slate 20 AWG Foil 500.0' (152.4m)
