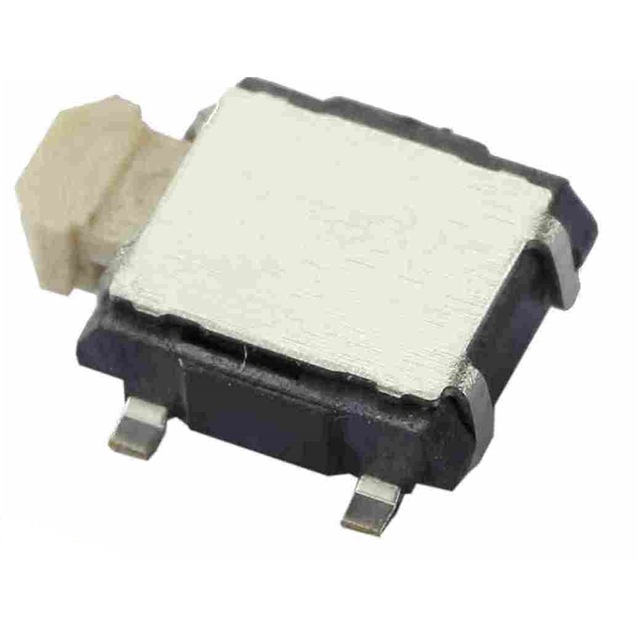

223DM1SACRB

Active

Tusonix a Subsidiary of CTS Electronic Components

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

Tusonix a Subsidiary of CTS Electronic Components

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	223DM1SACRB

Actuator Length, Right Angle	7.05 mm
Actuator Orientation	Side Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Features	Board Guide, Tactile Feedback
Illumination	Non-Illuminated
Mounting Type	Surface Mount, Right Angle
Operating Force	350 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	6 mm
Outline [y]	5.4 mm
Switch Function	Off-Mom
Switch Travel	0.2 mm
Termination Style	Gull Wing

Part	Mounting Type	Circuit	Actuator Length, Right Angle	Contact Rating @ Voltage	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Switch Travel	Actuator Orientation	Switch Function	Illumination	Features	Operating Force	Outline [y]	Outline [x]
Tusonix a Subsidiary of CTS Electronic Components 223DM1SACRB	Surface Mount Right Angle	SPST-NO	7.05 mm	0.05 A 12 VDC	Standard	85 °C	-40 °C	Gull Wing	0.2 mm	Side Actuated	Off-Mom	Non-Illuminated	Board Guide Tactile Feedback	350 gf	5.4 mm	6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	10000	$ 0.23

General part information

Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle
