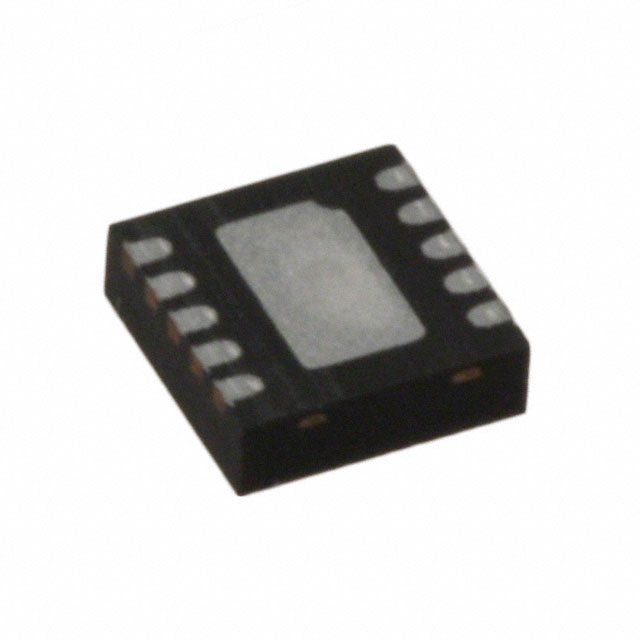

SC196ULTRT
NRNDSemtech Corporation
CONV DC-DC SINGLE STEP DOWN 2.5V TO 5.5V 10-PIN MLPD-UT T/R
Deep-Dive with AI
Search across all available documentation for this part.
SC196ULTRT
NRNDSemtech Corporation
CONV DC-DC SINGLE STEP DOWN 2.5V TO 5.5V 10-PIN MLPD-UT T/R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SC196ULTRT |
|---|---|
| Current - Output | 1.5 A |
| Frequency - Switching | 1 MHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | 10-UFDFN Exposed Pad |
| Supplier Device Package | 10-MLPD-UT (3x3) |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 2.5 V |
| Voltage - Output (Max) [Max] | 5.5 V |
| Voltage - Output (Min/Fixed) | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 1.75 | |
Description
General part information
SC196 Series
Up to 95% efficiency
Vout adjustable from less than 0.8V to Vin
Output current - 1.5A
Documents
Technical documentation and resources
No documents available
