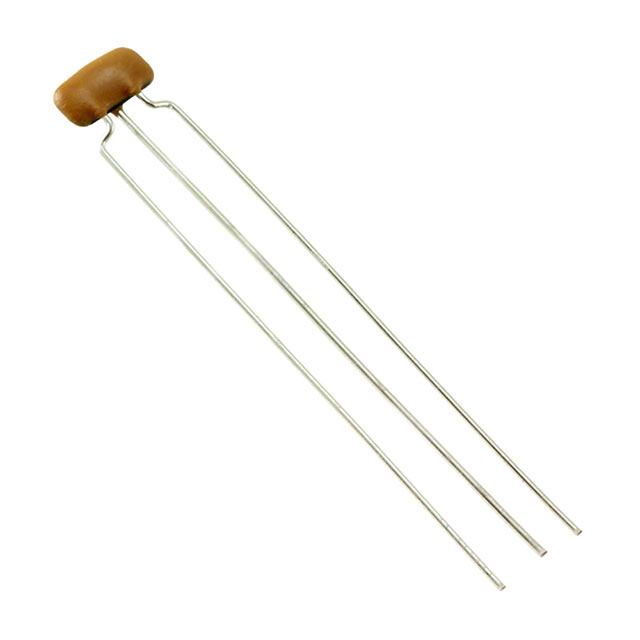

VFR3VD31E131T51B

Obsolete

Murata Power Solutions Inc.

FILTER C= 130PF ESD TH

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

FILTER C= 130PF ESD TH

Technical Specifications

Parameters and characteristics for this part

Part	ESD Protection	Type	Number of Channels [custom]	Package / Case	Applications	Current	Values	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Height [z]	Height [z]	Voltage - Rated	Mounting Type
Murata Power Solutions Inc. VFR3VD31E131U31A		Low Pass	3	3-SIP	General Purpose	20 mA	130 pF	0.091 "	2.3 mm	8 mm	0.315 "	-25 °C	85 °C	0.197 "	5 mm	25 VDC	Through Hole
Murata Power Solutions Inc. VFR3VD31E131T51B		Low Pass	3	3-SIP	General Purpose	20 mA	130 pF	0.091 "	2.3 mm	8 mm	0.315 "	-25 °C	85 °C	0.197 "	5 mm	25 VDC	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

EMI Filter Order Low Pass 3 Channel C= 130pF 20 mA 3-SIP

Technical documentation and resources

No documents available
