DF12B(3.0)-40DS-0.5V(86)

Obsolete

Hirose Electric USA, Inc.

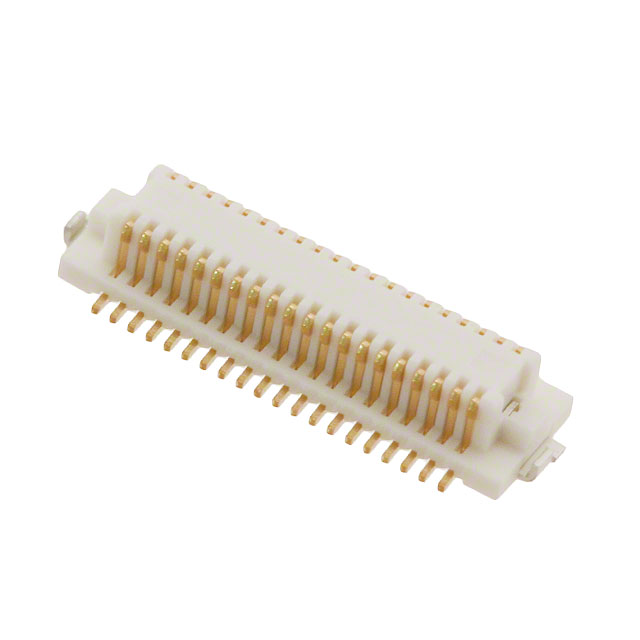

BOARD STACKING CONNECTOR, 40 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.02 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING, BEIGE INSULATOR, RECEPTACLE, ROHS COMPLIANT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DF12B(3.0)-40DS-0.5V(86)

Obsolete

Hirose Electric USA, Inc.

BOARD STACKING CONNECTOR, 40 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.02 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING, BEIGE INSULATOR, RECEPTACLE, ROHS COMPLIANT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF12B(3.0)-40DS-0.5V(86)

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Features	Solder Retention
Height Above Board	0.087 in
Height Above Board	2.2 mm
Mated Stacking Heights	3 mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

DF12B(3.0) Series

Part	Pitch [x]	Pitch [x]	Height Above Board [z]	Height Above Board [z]	Connector Type	Number of Positions	Features	Mated Stacking Heights	Contact Finish	Number of Rows	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Height Above Board	Height Above Board
Hirose Electric USA, Inc. DF12B(3.0)-40DP-0.5V(86)	0.5 mm	0.02 in	0.091 in	2.3 mm	Header Outer Shroud Contacts	40	Solder Retention	3 mm	Gold	2	Surface Mount	8 çin	0.203 çm
Hirose Electric USA, Inc. DF12B(3.0)-60DP-0.5V(86)	0.5 mm	0.02 in	0.091 in	2.3 mm	Header Outer Shroud Contacts	60	Solder Retention	3 mm	Gold	2	Surface Mount	8 çin	0.203 çm
Hirose Electric USA, Inc. DF12B(3.0)-60DS-0.5V	0.5 mm	0.02 in			Center Strip Contacts Receptacle	60	Solder Retention	3 mm	Gold	2	Surface Mount			0.087 in	2.2 mm
Hirose Electric USA, Inc. DF12B(3.0)-30DS-0.5V(86)	0.5 mm	0.02 in			Center Strip Contacts Receptacle	30	Solder Retention	3 mm	Gold	2	Surface Mount	8 çin	0.203 çm	0.087 in	2.2 mm
Hirose Electric USA, Inc. DF12B(3.0)-40DS-0.5V(86)	0.5 mm	0.02 in			Center Strip Contacts Receptacle	40	Solder Retention	3 mm	Gold	2	Surface Mount	8 çin	0.203 çm	0.087 in	2.2 mm
Hirose Electric USA, Inc. DF12B(3.0)-14DS-0.5V(86)	0.5 mm	0.02 in			Center Strip Contacts Receptacle	14	Solder Retention	3 mm	Gold	2	Surface Mount	8 çin	0.203 çm	0.087 in	2.2 mm
Hirose Electric USA, Inc. DF12B(3.0)-14DP-0.5V(65)
Hirose Electric USA, Inc. DF12B(3.0)-32DP-0.5V(48)
Hirose Electric USA, Inc. DF12B(3.0)-50DS-0.5V(86)	0.5 mm	0.02 in			Center Strip Contacts Receptacle	50	Solder Retention	3 mm	Gold	2	Surface Mount	8 çin	0.203 çm	0.087 in	2.2 mm
Hirose Electric USA, Inc. DF12B(3.0)-50DP-0.5V(86)	0.5 mm	0.02 in	0.091 in	2.3 mm	Header Outer Shroud Contacts	50	Solder Retention	3 mm	Gold	2	Surface Mount	8 çin	0.203 çm
