0409-201-2400
ActiveTE Connectivity Raychem Cable Protection

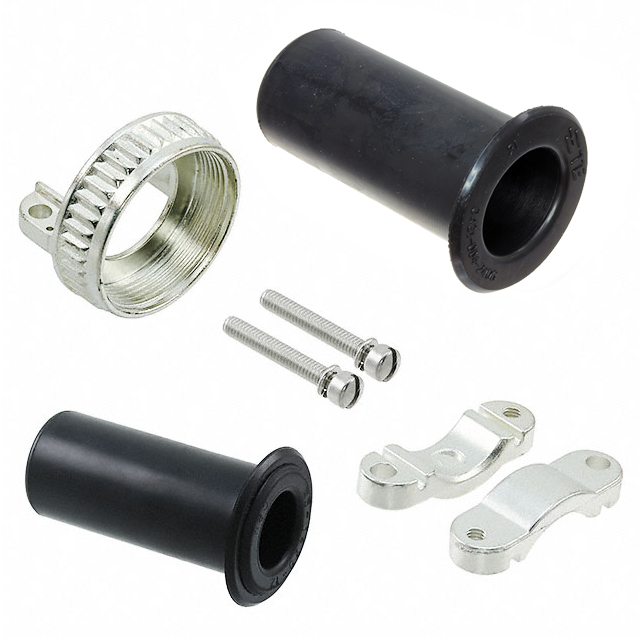

CONN CAB CLAMP SZ24 1 7/16-18
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0409-201-2400
ActiveTE Connectivity Raychem Cable Protection
CONN CAB CLAMP SZ24 1 7/16-18
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0409-201-2400 |
|---|---|
| Cable Exit | 180 ° |
| Cable Opening [custom] | 24.08 mm |
| Cable Opening [custom] | 0.948 in |
| Color | Silver |
| Diameter - Outside [diameter] | 1.688 " |
| Diameter - Outside [diameter] | 42.88 mm |
| Features | Clamp Screws, Bushing |
| For Use With/Related Products | HD30 Series Connectors |
| Plating | Tin |
| Shell Size - Insert | 24 |
| Shielding | Unshielded |
| Thread Size | 1 7/16-18 UNEF |
| Type | Cable Clamp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 21.33 | |
| 10 | $ 16.43 | |||
| 25 | $ 14.87 | |||
| 50 | $ 13.82 | |||
| 100 | $ 12.86 | |||
| 250 | $ 11.74 | |||
| 500 | $ 10.98 | |||
Description
General part information
0409 Series
Silver Connector Cable Clamp 1 7/16-18 UNEF 24
