SCBSM-632-4-01
ActiveEssentra Access Solutions

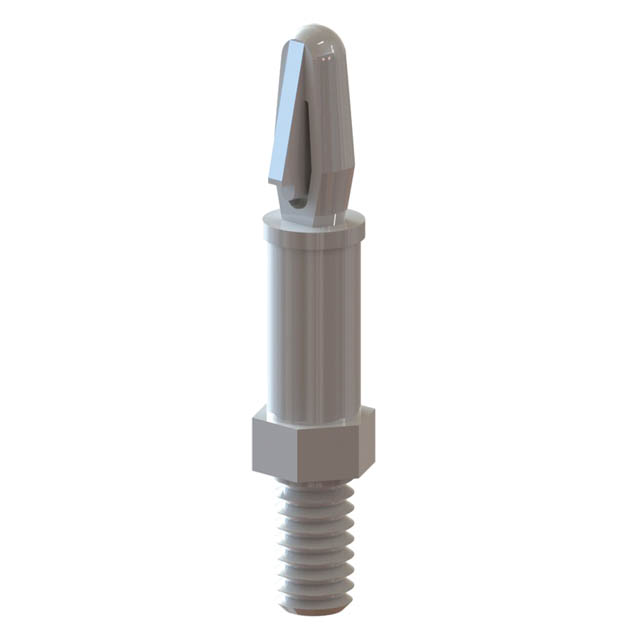

BRD SPT SNAP LOCK THR STUD 1/4"
Deep-Dive with AI
Search across all available documentation for this part.
SCBSM-632-4-01
ActiveEssentra Access Solutions
BRD SPT SNAP LOCK THR STUD 1/4"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SCBSM-632-4-01 |
|---|---|
| Between Board Height | 6.35 mm |
| Between Board Height | 0.25 in |
| Between Board Height | 0.25 in |
| Features | 6-32 Thread |
| Holding Type | Snap Lock |
| Length - Overall [x] | 0.846 " |
| Length - Overall [x] | 21.5 mm |
| Material | Nylon |
| Mounting Panel Thickness | 0.25 " |
| Mounting Panel Thickness | 6.35 mm |
| Mounting Panel Thickness | 0.25 " |
| Mounting Type | Threaded Stud |
| Support Hole Diameter [diameter] | 0.125 in |
| Support Hole Diameter [diameter] | 0.125 in |
| Support Hole Diameter [diameter] | 3.18 mm |
| Support Panel Thickness | 0.0625 " |
| Support Panel Thickness | 0.062 " |
| Support Panel Thickness | 1.57 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.61 | |
| 5 | $ 0.51 | |||
| 10 | $ 0.47 | |||
| 25 | $ 0.43 | |||
| 50 | $ 0.40 | |||
| 100 | $ 0.38 | |||
| 250 | $ 0.35 | |||
| 500 | $ 0.33 | |||
| 1000 | $ 0.31 | |||
Description
General part information
SCBSM Series
Board Support Snap Lock / Threaded Stud Nylon 0.250" (6.35mm) 1/4"
Documents
Technical documentation and resources
No documents available
