C1DXG-1436G

Active

CW Industries

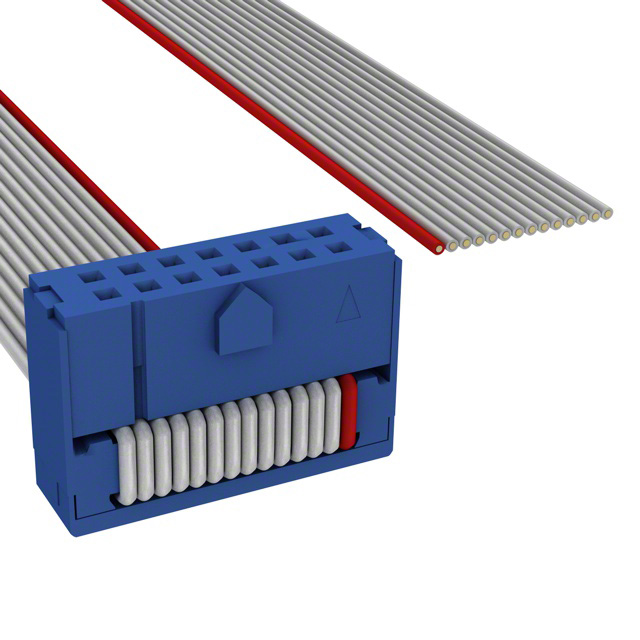

IDC CABLE - CKR14G/AE14G/X

Search across all available documentation for this part.

Active

CW Industries

IDC CABLE - CKR14G/AE14G/X

Technical Specifications

Parameters and characteristics for this part

Specification	C1DXG-1436G

Cable Termination	IDC
Connector Type	Socket to Cable
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Polarizing Key, Strain Relief
Length [x]	3 ft
Length [x]	914.4 mm
Number of Positions	14
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

Part	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Rows	Cable Termination	Color	Number of Positions	Features	Pitch - Cable	Pitch - Cable	Length [x]	Length [x]	Shielding	Pitch - Connector	Pitch - Connector	Connector Type	Number of Positions
CW Industries C1DXG-1636M	10 Áin	0.25 Ám	Gold	2	IDC	Multiple Ribbon	16	Polarizing Key Strain Relief	0.05 "	1.27 mm	3 ft	914.4 mm	Unshielded	0.1 in	2.54 mm	Socket to Cable
CW Industries C1DXG-1036M	10 Áin	0.25 Ám	Gold	2	IDC	Multiple Ribbon		Polarizing Key Strain Relief	0.05 "	1.27 mm	3 ft	914.4 mm	Unshielded	0.1 in	2.54 mm	Socket to Cable	10
CW Industries C1DXG-1436G	10 Áin	0.25 Ám	Gold	2	IDC			Polarizing Key Strain Relief	0.05 "	1.27 mm	3 ft	914.4 mm	Unshielded	0.1 in	2.54 mm	Socket to Cable	14

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

14 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm)
