5-520183-2

Active

TE Connectivity Raychem Cable Protection

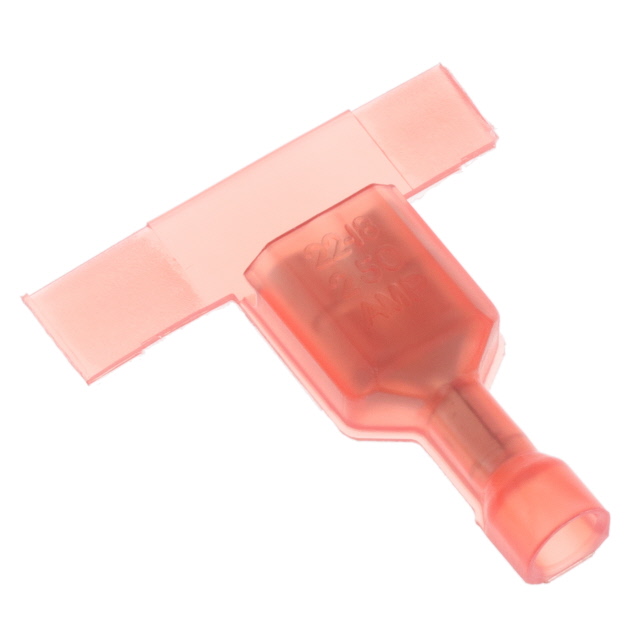

250 ULTRA-FAST RCPT 22-18 TPBR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5-520183-2

Active

TE Connectivity Raychem Cable Protection

250 ULTRA-FAST RCPT 22-18 TPBR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5-520183-2

Color	Red
Contact Finish	Tin
Contact Material	Brass
Gender	Female
Insulation	Fully Insulated
Insulation Diameter [diameter]	0.135 in
Insulation Diameter [diameter]	3.43 mm
Length - Overall	0.855 in
Length - Overall	21.72 mm
Mounting Type	Free Hanging (In-Line)
Tab Thickness	0.032 in
Tab Thickness	0.81 mm
Tab Width	6.35 mm
Tab Width	0.25 in
Terminal Type	Standard
Termination	Crimp
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

Ultra-Fast 250 Series

Part	Insulation	Gender	Mounting Type	Tab Thickness	Tab Thickness	Terminal Type	Color	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Contact Finish	Wire Gauge [Max]	Wire Gauge [Min]	Contact Material	Termination	Tab Width	Tab Width	Length - Overall [x]	Length - Overall [x]	Length - Overall	Length - Overall	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Max]
TE Connectivity Raychem Cable Protection 2-520128-2	Fully Insulated	Female	Free Hanging (In-Line) Right Angle	0.032 in	0.81 mm	Angled - 90° Flag	Red	4.19 mm	0.165 "	Tin	22 AWG	17.5 AWG	Brass	Crimp	6.35 mm	0.25 in
TE Connectivity Raychem Cable Protection 4-521097-2	Fully Insulated	Male	Free Hanging (In-Line)	0.032 in	0.81 mm	Standard	Yellow	8.13 mm	0.32 in	Tin	12 AWG	10 AWG	Brass	Crimp	6.35 mm	0.25 in	23.75 mm	0.935 in
TE Connectivity Raychem Cable Protection 3-350819-2	Fully Insulated	Female	Free Hanging (In-Line)	0.032 in	0.81 mm	Standard	Blue	4.06 mm	0.16 in	Tin			Brass	Crimp	6.35 mm	0.25 in			0.855 in	21.72 mm
TE Connectivity Raychem Cable Protection 2-520856-2	Fully Insulated	Female	Free Hanging (In-Line) Right Angle	0.032 in	0.81 mm	Angled - 90° Flag	Red	5.84 mm	0.23 in	Tin	22 AWG	17.5 AWG	Brass	Crimp	6.35 mm	0.25 in
TE Connectivity Raychem Cable Protection 2-520183-2	Fully Insulated	Female	Free Hanging (In-Line)	0.032 in	0.81 mm	Standard	Red	3.43 mm	0.135 in	Tin	22 AWG	17.5 AWG	Brass	Crimp	6.35 mm	0.25 in			0.855 in	21.72 mm
TE Connectivity Raychem Cable Protection 5-520183-2	Fully Insulated	Female	Free Hanging (In-Line)	0.032 in	0.81 mm	Standard	Red	3.43 mm	0.135 in	Tin	22 AWG	17.5 AWG	Brass	Crimp	6.35 mm	0.25 in			0.855 in	21.72 mm
TE Connectivity Raychem Cable Protection 3-520408-2	Fully Insulated	Female	Free Hanging (In-Line)	0.032 in	0.81 mm	Standard	Blue			Tin			Brass	Crimp	6.35 mm	0.25 in			0.855 in	21.72 mm	2.29 mm	0.16 in	0.09 in	4.06 mm
TE Connectivity Raychem Cable Protection 3-520117-2	Fully Insulated	Female	Free Hanging (In-Line)	0.032 in	0.81 mm	Standard	Blue	4.06 mm	0.16 in	Tin			Phosphor Bronze	Crimp	6.35 mm	0.25 in			0.855 in	21.72 mm
TE Connectivity Raychem Cable Protection 3-520116-2	Fully Insulated	Female	Free Hanging (In-Line)	0.032 in	0.81 mm	Standard	Blue	4.06 mm	0.16 in	Tin			Phosphor Bronze	Crimp	6.35 mm	0.25 in			0.855 in	21.72 mm
TE Connectivity Raychem Cable Protection 9-520183-2	Fully Insulated	Female	Free Hanging (In-Line)	0.032 in	0.81 mm	Standard	Black	3.43 mm	0.135 in	Tin	22 AWG	17.5 AWG	Brass	Crimp	6.35 mm	0.25 in			0.855 in	21.72 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.19
		10	$ 0.17
		25	$ 0.17
		50	$ 0.17
		100	$ 0.15
		250	$ 0.13
		500	$ 0.12
	Tape & Reel (TR)	2200	$ 0.12
Newark	Each	5000	$ 0.15

Description

General part information

Ultra-Fast 250 Series

0.250" (6.35mm) Quick Connect Female 18-22 AWG Crimp Connector Fully Insulated
