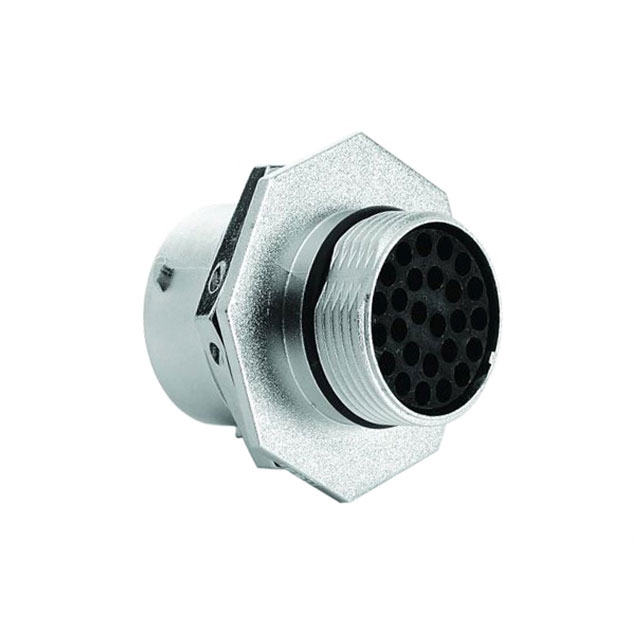

RT0W71626PNH

Active

Amphenol Sine Systems Corp

CONN RCPT HSNG MALE 26POS PNL MT

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN RCPT HSNG MALE 26POS PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	RT0W71626PNH

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	20
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Note	Contacts Not Included
Number of Positions	26
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert [Max]	26
Shell Size - Insert [Min]	16
Shielding	Shielded
Type	For Male Pins

Part	Ingress Protection	Shielding	Number of Positions	Contact Size	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Orientation	Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Shell Finish	Insert Material	Fastening Type	Note	Housing Color	Connector Type	Contact Type	Mounting Feature	Material Flammability Rating	Shell Material	Contact Finish - Mating	Voltage Rating	Color	Primary Material	Contact Finish Thickness - Mating	Termination	Current Rating (Amps)
Amphenol Sine Systems Corp RT0W71626PNHEC03
Amphenol Sine Systems Corp RT0W71626PNH	IP67 - Dust Tight Waterproof	Shielded	26	20	16	26	N	For Male Pins	-40 °C	105 ░C	Circular	Nickel	Thermoplastic	Bayonet Lock	Contacts Not Included	Silver	Receptacle Housing	Crimp	Bulkhead - Front Side Nut	UL94 V-0	Zinc Alloy
Amphenol Sine Systems Corp RT0W71626PNH-K	IP67 - Dust Tight Waterproof		26		16	26	N		-40 °C	105 ░C		Nickel		Bayonet Lock			Male Pins Receptacle		Bulkhead - Front Side Nut		Zinc Die Cast	Gold	150 VAC	Silver	Metal	Flash	Crimp	7.5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 16.74

General part information

26 Position Circular Connector Receptacle Housing Panel Mount
