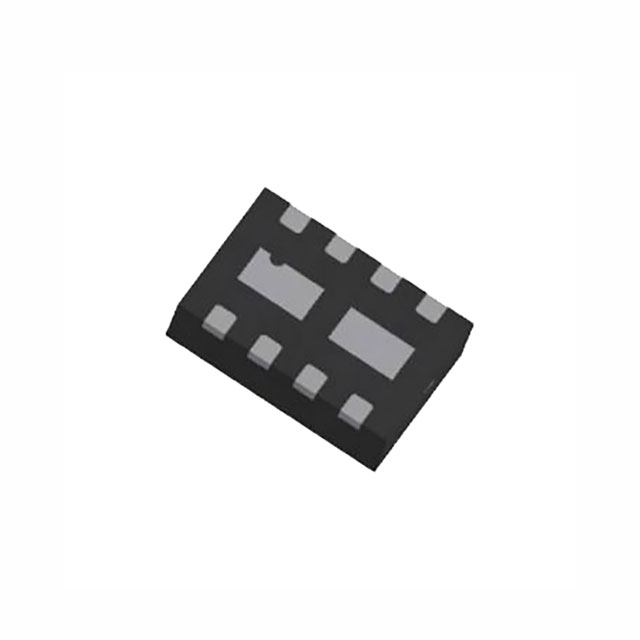

ZXTC6720MCTA

Active

Diodes Inc

BIPOLAR ARRAY, NPN, PNP, 80V, 4A ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Diodes Inc

BIPOLAR ARRAY, NPN, PNP, 80V, 4A ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	ZXTC6720MCTA

Current - Collector (Ic) (Max)	2.5 A, 3.5 A
Current - Collector Cutoff (Max) [Max]	100 nA
DC Current Gain (hFE) (Min) @ Ic, Vce	40 hFE, 300
Frequency - Transition	180 MHz, 160 MHz
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	8-WDFN Exposed Pad
Power - Max [Max]	1.7 W
Supplier Device Package	DFN3020B-8
Transistor Type	1 NPN, 1 PNP
Vce Saturation (Max) @ Ib, Ic	270 mV, 340 mV
Voltage - Collector Emitter Breakdown (Max) [Max]	80 V
Voltage - Collector Emitter Breakdown (Max) [Min]	70 V

Complementary, 80V, 3.5A, DFN3020-8

Part	Power - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Transistor Type	Package / Case	Voltage - Collector Emitter Breakdown (Max) [Min]	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector (Ic) (Max)	Current - Collector Cutoff (Max) [Max]	Supplier Device Package	Frequency - Transition	Vce Saturation (Max) @ Ib, Ic	DC Current Gain (hFE) (Min) @ Ic, Vce	Mounting Type
Diodes Inc ZXTC6720MCTA	1.7 W	-55 °C	150 °C	1 NPN 1 PNP	8-WDFN Exposed Pad	70 V	80 V	2.5 A 3.5 A	100 nA	DFN3020B-8	160 MHz 180 MHz	270 mV 340 mV	40 hFE 300	Surface Mount
