EPM9320ALC84-10

Obsolete

Altera

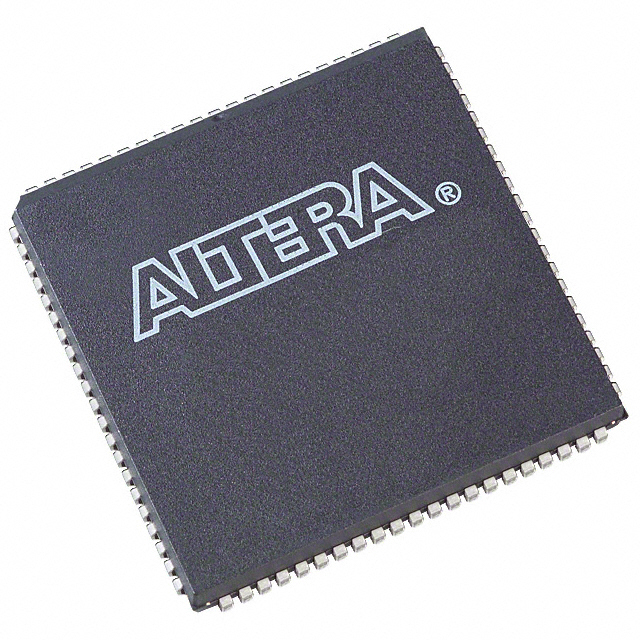

IC CPLD 320MC 10NS 84PLCC

Search across all available documentation for this part.

Obsolete

Altera

IC CPLD 320MC 10NS 84PLCC

Technical Specifications

Parameters and characteristics for this part

Specification	EPM9320ALC84-10

Delay Time tpd(1) Max [Max]	10 ns
Mounting Type	Surface Mount
Number of Gates [custom]	6000
Number of I/O	60
Number of Logic Elements/Blocks	20
Number of Macrocells	320
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Package / Case	84-LCC (J-Lead)
Programmable Type	In System Programmable
Supplier Device Package	84-PLCC (29.31x29.31)
Voltage Supply - Internal [Max]	5.25 V
Voltage Supply - Internal [Min]	4.75 V

Part	Mounting Type	Number of Logic Elements/Blocks	Supplier Device Package	Programmable Type	Number of Macrocells	Number of Gates [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Number of I/O	Package / Case	Voltage Supply - Internal [Min]	Voltage Supply - Internal [Max]	Delay Time tpd(1) Max [Max]
Altera EPM9320ALC84-10	Surface Mount	20	84-PLCC (29.31x29.31)	In System Programmable	320	6000	70 °C	0 °C	60	84-LCC (J-Lead)	4.75 V	5.25 V	10 ns
Altera EPM9320RI208-20	Surface Mount	20	208-RQFP (28x28)	In System Programmable	320	6000	85 °C	-40 °C	132	208-BFQFP Exposed Pad	4.5 V	5.5 V	20 ns
Altera EPM9320RC208-15	Surface Mount	20	208-RQFP (28x28)	In System Programmable	320	6000	70 °C	0 °C	132	208-BFQFP Exposed Pad	4.75 V	5.25 V	15 ns
Altera EPM9320ARC208-10N	Surface Mount	20	208-RQFP (28x28)	In System Programmable	320	6000	70 °C	0 °C	132	208-BFQFP Exposed Pad	4.75 V	5.25 V	10 ns
Altera EPM9320RI208-20	Surface Mount	20	208-RQFP (28x28)	In System Programmable	320	6000	85 °C	-40 °C	132	208-BFQFP Exposed Pad	4.5 V	5.5 V	20 ns
